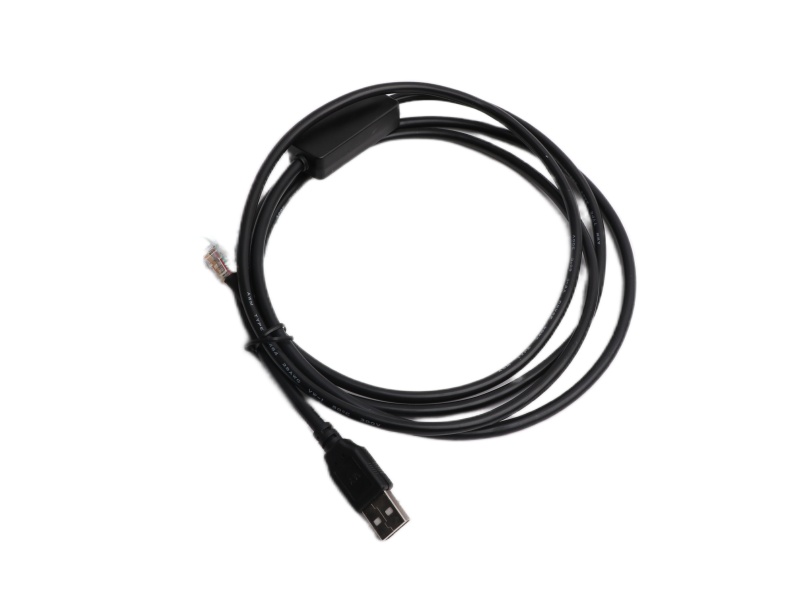

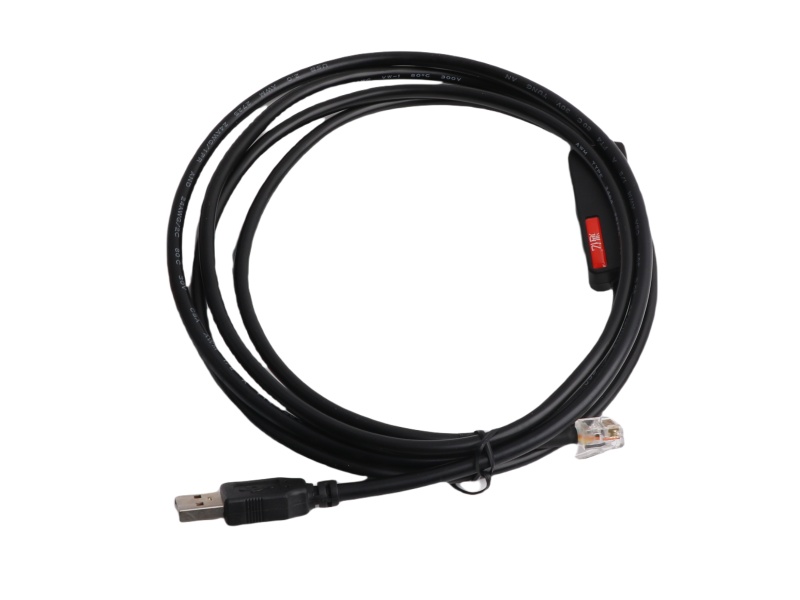

IC693CBL316 Product datasheet
|
Model number: |
IC693CBL316 |
|
Module Type： |
Programming Cable |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Series 90-30 |
|
Lead time： |
In Stock |
|
Weight: |
0.08 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
20x16x2.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC693CBL316 Functional Description
The GE Fanuc IC693CBL316 Serial Interface Cable is a vital tool for linking CPU modules and digital servo modules, such as the IC693CMM321, IC693CPU351, IC693CPU352, IC693CPU363, IC693DSM302, and IC693DSM314, to a personal computer's serial port. This cable facilitates the downloading of CPU firmware upgrades and application programs to Port 1 of these modules, using the Loader software on the PC. It is also commonly referred to as the "Station Manager Cable" due to its ability to connect Ethernet-enabled terminals or terminal emulators with Station Manager RS-232 ports. This connection allows direct access to Station Manager software over high-speed Ethernet networks, bypassing the need for a converter.
Furthermore, the IC693CBL316 is essential for programming, configuration, and firmware upgrades, particularly for IC693CPU351, IC693CPU352, and IC693CPU363 CPU modules. IC693CBL316 Serial Cable for the Series 90-30 CPUs is designed with a 9-pin D-shell connector on one end, enabling connection to the RS-232-compatible port (Port 1) of digital servo modules, while the other end features a 6-pin RJ-11 connector for easy attachment to a PC's serial port. Additionally, the cable's construction includes a 1-meter (3-foot) shielded cable, ensuring stable data transmission for tasks like motion program downloads and firmware upgrades.
In essence, the GE Fanuc IC693CBL316 Serial Interface Cable is indispensable for those working with industrial automation and control systems, offering quick and reliable connections for programming and maintenance activities.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC697ALG230 |
GE |
IC694PWR321 |
GE |
IC693MDL740 |
|
GE |
IC695PSA140 |
GE |
IC694MDL940 |
GE |
IC693MDL646 |
|
GE |
IC695PNC001 |
GE |
IC694MDL742 |
GE |
IC693MDL645 |
|
GE |
IC695PBS301 |
GE |
IC694MDL645D |
GE |
IC693MDL330 |
|
GE |
IC695PBM300 |
GE |
IC694MDL645A |
GE |
IC693MDL231 |
|
GE |
IC695CBL001A |
GE |
IC694MDL240 |
GE |
IC693CPU364 |
|
GE |
IC695ACC400 |
GE |
IC693PBS105 |
GE |
IC693CPU311 |
|
GE |
IC695CMM004 |
GE |
IC693PTM101 |
GE |
IC693CMM321 |
|
GE |
IC695ALG600 |
GE |
IC693MDL930 |
GE |
IC693CHS398 |
|
GE |
IC695ACC412 |
GE |
IC693MDL752 |
GE |
IC693CBL316 |
Series 90-30 Introduction
The Series 90-30 I/O modules described in this manual can be controlled two ways:
1. With a Series 90-30 Programmable Logic Controller (PLC).
2. With a Personal Computer (PC) that has an installed Personal Computer Interface card (or similar interface). This allows software on the PC to control and monitor Series 90-30 I/O. If you are using Series 90-30 I/O as part of a Series 90-30 PLC system, you should refer to GFK-0356, the Series 90-30 Programmable Controller Installation manual, for more information. If you are using a Personal Computer to control the Series 90-30 I/O, refer to the documentation for the PCIF, your Personal Computer, and your application software for more information.
The History of GE Fanuc PLCs
1986- The GE Fanuc Automation Coproration was jointly established in the U.S.A. by FANUC and General Electric.
1987- GE Fanuc releases the series Five PLC.
In the late 1980s, the GE IP Series Five PLC became a popular unit for most mid-range PLC applications. A powerful CPU with a wide array of digital and analog I/O modules made the Series 5 a versatile and popular controller.
1990- GE releases the 90-30 series PLC.
The Series 90-30 PLC is a versatile controller that features redundant power and CPU’s, easy programming, and a modular architecture that lets the user expand the system with their own demands. It is intended to give the user an introduction to the basic components of a GE series 90-30 PLC.
1991- Ge releases the 90-70 series PLC.
The GE 90-70 is designed to meet challenges for applications such as advanced batch processing, triple modular, and high-speed processing. Based on Intel microprocessor technology, these high-performance controllers can handle large amounts of I/O and greater process memory for the most complicated productions.
1998- GE Fanuc releases the Versamax PLC.
VersaMax solution is a single control product that may be used as I/O, as a PLC, or as distributed control for up to 256 I/O points. With its modular and scalable architecture, intuitive, and ease of use, it saves initial costs for machine builders and life-cycle costs for end-users.
1999- Ge Fanuc releases Field Control Systems.
With Field Control, GE IP offers decentralized I/O and decentralized control in a single, low-cost, modular product. GE IP engineers have refined proven technology to create a truly modular system. Each station of a Field Control network can act as a stand-alone controller, allowing for physical separation of logical control functions and faster processing times.
2002- GE releases the Rx7i PLC.
The system is designed to replace the 90-70 Series systems. It uses most I / O 90-70 and offers the most advanced I / O. The backplane still uses the VME standard for third-party interfaces. The Rx7i comes with a single control engine and a universal programming environment to ensure application portability across multiple platforms.
2003- GE releases the Rx3i Controller.
The PACSystems RX3i controller is a Programmable Automation Controller (PAC). The RX3i features a single control engine and a universal programming environment to provide application portability across multiple hardware platforms and deliver a true convergence of control.
