IC693CHS398 Product datasheet
|
Model number: |
IC693CHS398 |
|
Module Type： |
Expansion Baseplate |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Series 90-30 |
|
Lead time： |
In Stock |
|
Weight: |
0.18 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13x13.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |

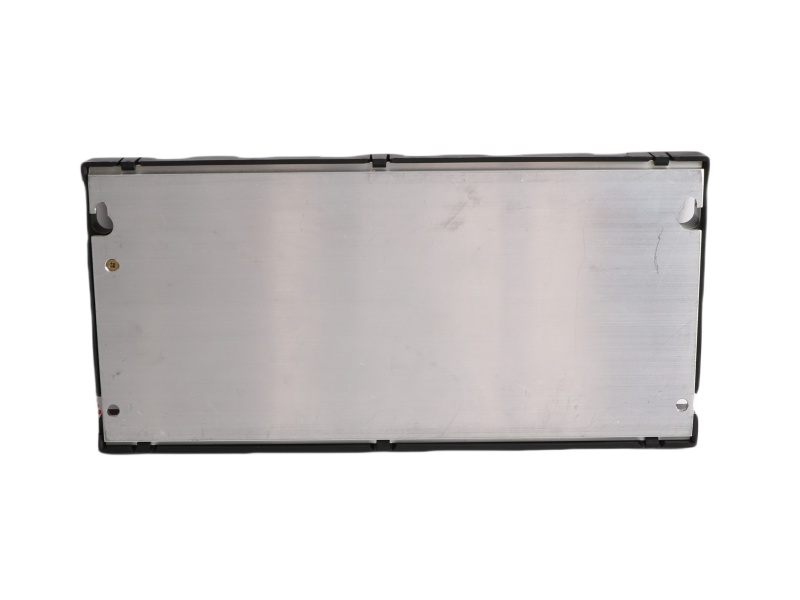

IC693CHS398 Functional Description
The IC693CHS398 is an expansion baseplate from the 90-30 PLC series, originally by GE Fanuc and now under Emerson Automation. Designed for industrial control systems, it connects to a CPU baseplate via its expansion port, enabling the CPU module to manage additional I/O modules. The number of IC693CHS398 Input Output Module for PLC Controllers a system can support depends on the CPU type. For example, CPUs 331, 340, and 341 allow up to four expansion baseplates, while CPUs 350 and higher support up to seven.

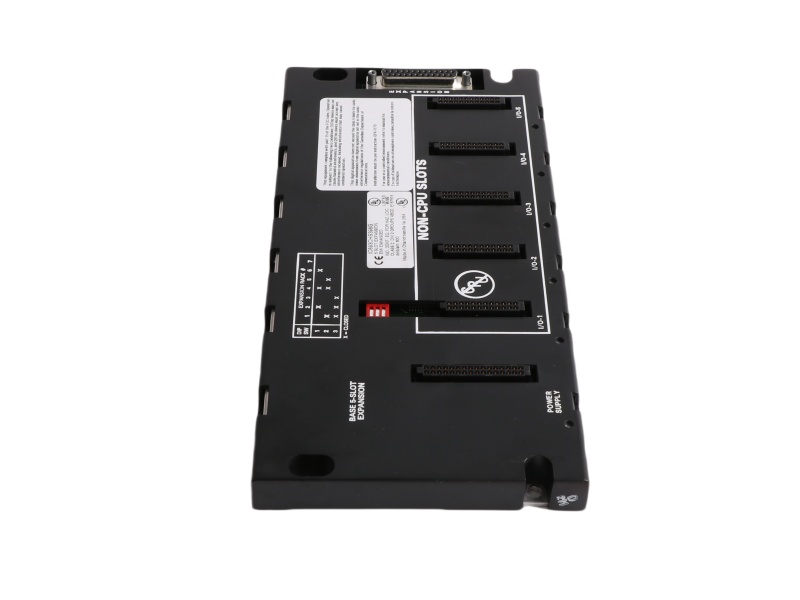

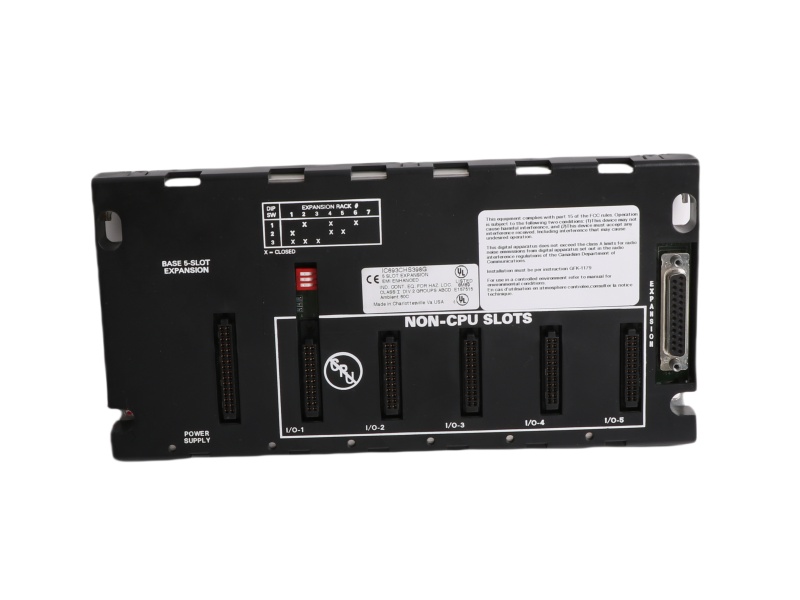

The IC693CHS398 5 Slot Expansion Baseplate features five I/O slots that accommodate option modules, with unique slot dimensions to prevent incorrect installation. To operate, it requires a dedicated power supply module, mounted on the left-side power supply slot. An expansion port on the rightmost side facilitates the connection of additional baseplates, with up to 50 feet (15 meters) of interconnecting cable supported for continuous communication.
With dimensions of 10.43 x 5.12 x 5.59 inches (W x H x D) and an internal power requirement of 170 mA at 5VDC, the IC693CHS398 Turbine Control System Parts offers a compact and efficient design. It is incompatible with PCM, ADC, Bus Expansion Modules (BEM), and CMM311 modules, ensuring specific use cases.
For reliable operation, the IC693CHS398 and connected baseplates must share a common ground. Its 25-pin D-type female I/O expansion connector ensures secure connections. As a robust solution, the IC693CHS398 Installing I/O Modules plays a vital role in expanding the capabilities of 90-30 PLC systems.
