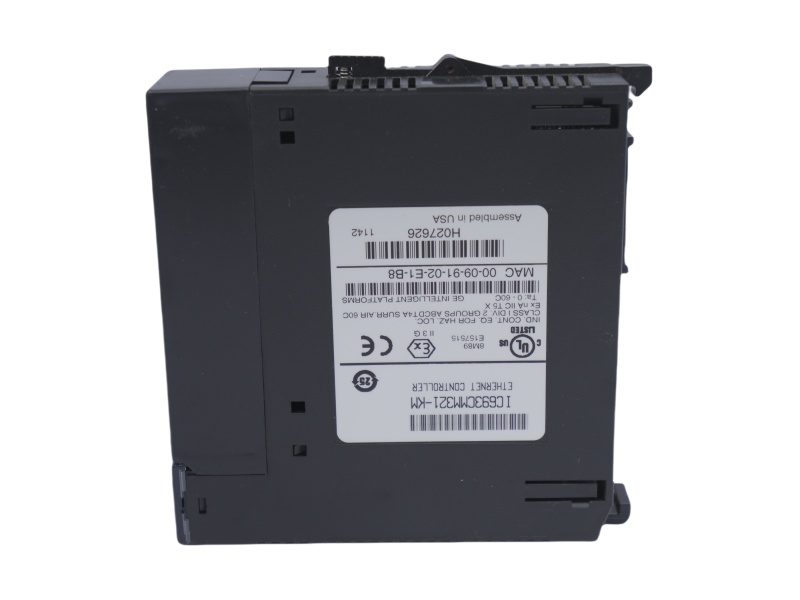

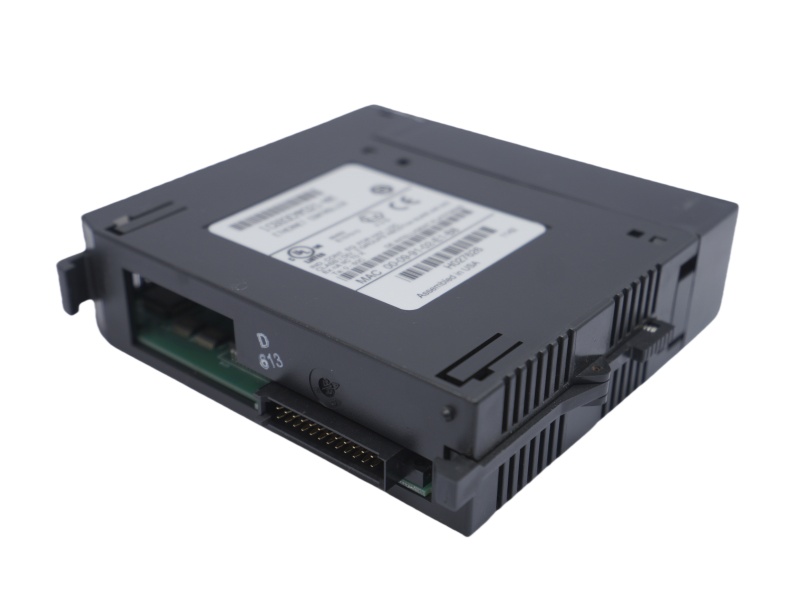

GE Fanuc IC693CMM321 Ethernet interface module

GE Fanuc IC693CMM321
GE Fanuc IC693CMM321
GE Fanuc IC693CMM321

IC693CMM321 Product datasheet

Model number:

IC693CMM321



Module Type:

Ethernet interface module

Manufacture:

GE



Condition:

Brand New

Range of Product:

Series 90-30



Lead time:

In Stock

Weight:

0.18 kg



HS CODE:

8537101190

Dimension:

3.5x13x13.5cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

Active



Communication Service:

Ethernet router



IC693CMM321 Functional Description


The IC693CMM321 is a highly efficient Ethernet interface module designed for the Series 90-30 Programmable Logic Controller (PLC) platform by GE Fanuc Automation. It connects the Series 90-30 baseplate directly to an Ethernet network, enabling distributed I/O, remote communication with CPUs, and seamless interaction with devices such as Human Machine Interfaces (HMI), Supervisory Control and Data Acquisition (SCADA) systems, and Distributed Control Systems (DCS).

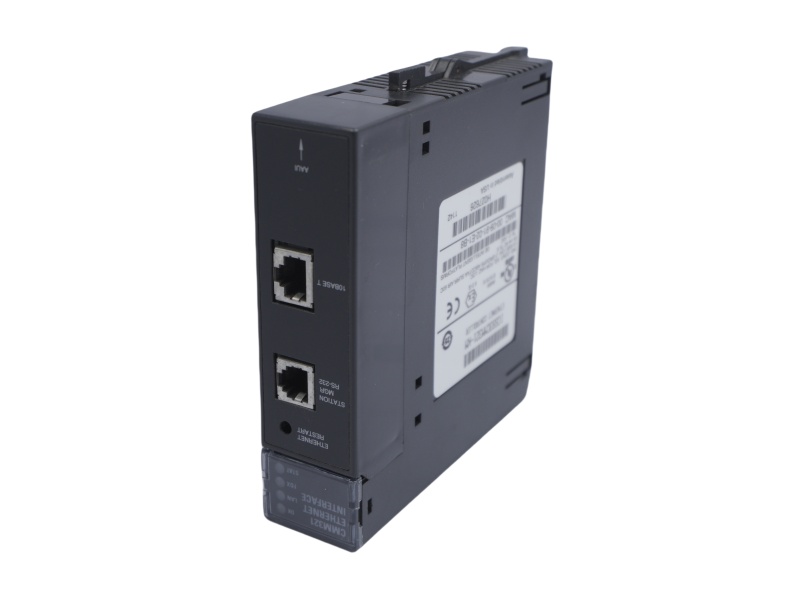

The IC693CMM321-KM Central Processor Module features multiple communication options to meet diverse requirements. It includes an RS-232, RJ-11 serial port serving as the Station Manager Port, an RS-485, 15-pin D-type port used for firmware updates, and an AAUI network port for Ethernet connections. To enhance usability, the module comes with LED indicators: OK, LAN, SER, and STAT. These LEDs display the module’s operational status, network activity, and any exceptions detected.



This IC693CMM321-EE RX3i Controller Module is best utilized with CPUs running version 6.50 or later, enabling full Ethernet functionality and supporting up to 16 server connections. While it remains compatible with older CPU versions (5.03 to 6.04), functionality is restricted to a single SRTP server connection. Configuration can be completed using software such as Logicmaster 90-30 (version 6.01 or higher), Control (version 2.01 or higher), or VersaPro (version 1.0 or higher).



The IC693CMM321-GH High Performance Controller is versatile, supporting one or two modules per Series 90-30 baseplate while maintaining compatibility with various devices. However, it is not supported by GE handheld programmers in the Series 90-30/20/Micro product lines. This Ethernet module simplifies data transfer, enables simultaneous communication with multiple devices, and ensures robust system maintenance, making the IC693CMM321 an essential tool for modern industrial automation.



If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




GE

IC697ALG230

GE

IC694PWR321

GE

IC693MDL740

GE

IC695PSA140

GE

IC694MDL940

GE

IC693MDL646

GE

IC695PNC001

GE

IC694MDL742

GE

IC693MDL645

GE

IC695PBS301

GE

IC694MDL645D

GE

IC693MDL330

GE

IC695PBM300

GE

IC694MDL645A

GE

IC693MDL231

GE

IC695CBL001A

GE

IC694MDL240

GE

IC693CPU364

GE

IC695ACC400

GE

IC693PBS105

GE

IC693CPU311

GE

IC695CMM004

GE

IC693PTM101

GE

IC693CMM321

GE

IC695ALG600

GE

IC693MDL930

GE

IC693CHS398

GE

IC695ACC412

GE

IC693MDL752

GE

IC693CBL316





Series 90-30 Introduction


The Series 90-30 I/O modules described in this manual can be controlled two ways:

1. With a Series 90-30 Programmable Logic Controller (PLC).

2. With a Personal Computer (PC) that has an installed Personal Computer Interface card (or similar interface). This allows software on the PC to control and monitor Series 90-30 I/O. If you are using Series 90-30 I/O as part of a Series 90-30 PLC system, you should refer to GFK-0356, the Series 90-30 Programmable Controller Installation manual, for more information. If you are using a Personal Computer to control the Series 90-30 I/O, refer to the documentation for the PCIF, your Personal Computer, and your application software for more information.


The History of GE Fanuc PLCs

1986- The GE Fanuc Automation Coproration was jointly established in the U.S.A. by FANUC and General Electric.



1987- GE Fanuc releases the series Five PLC.



In the late 1980s, the GE IP Series Five PLC became a popular unit for most mid-range PLC applications. A powerful CPU with a wide array of digital and analog I/O modules made the Series 5 a versatile and popular controller.



1990- GE releases the 90-30 series PLC.



The Series 90-30 PLC is a versatile controller that features redundant power and CPU’s, easy programming, and a modular architecture that lets the user expand the system with their own demands. It is intended to give the user an introduction to the basic components of a GE series 90-30 PLC.



1991- Ge releases the 90-70 series PLC.



The GE 90-70 is designed to meet challenges for applications such as advanced batch processing, triple modular, and high-speed processing. Based on Intel microprocessor technology, these high-performance controllers can handle large amounts of I/O and greater process memory for the most complicated productions.



1998- GE Fanuc releases the Versamax PLC.

VersaMax solution is a single control product that may be used as I/O, as a PLC, or as distributed control for up to 256 I/O points. With its modular and scalable architecture, intuitive, and ease of use, it saves initial costs for machine builders and life-cycle costs for end-users.



1999- Ge Fanuc releases Field Control Systems.



With Field Control, GE IP offers decentralized I/O and decentralized control in a single, low-cost, modular product. GE IP engineers have refined proven technology to create a truly modular system. Each station of a Field Control network can act as a stand-alone controller, allowing for physical separation of logical control functions and faster processing times.



2002- GE releases the Rx7i PLC.



The system is designed to replace the 90-70 Series systems. It uses most I / O 90-70 and offers the most advanced I / O. The backplane still uses the VME standard for third-party interfaces. The Rx7i comes with a single control engine and a universal programming environment to ensure application portability across multiple platforms.



2003- GE releases the Rx3i Controller.



The PACSystems RX3i controller is a Programmable Automation Controller (PAC). The RX3i features a single control engine and a universal programming environment to provide application portability across multiple hardware platforms and deliver a true convergence of control.
