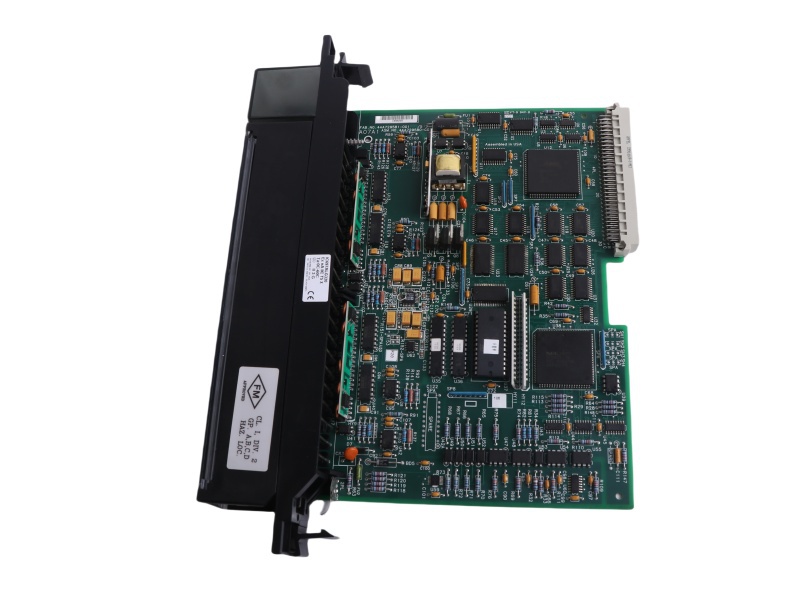

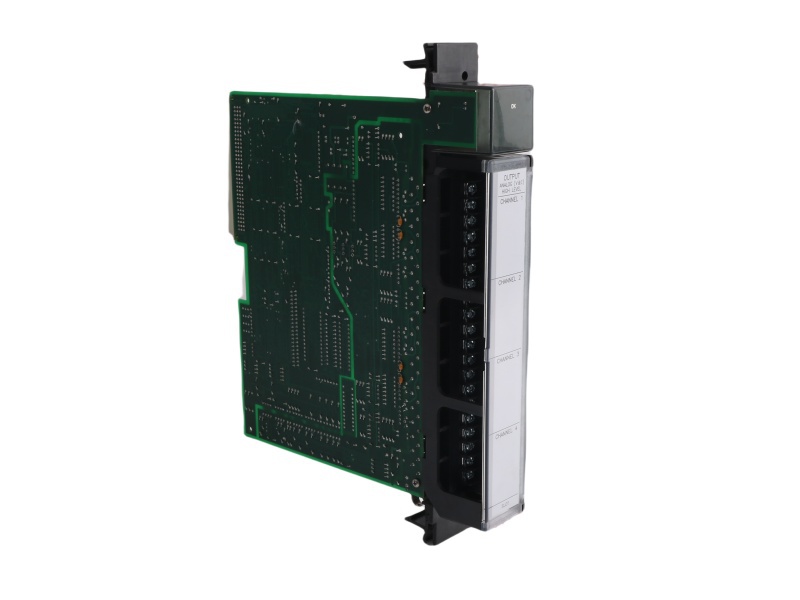

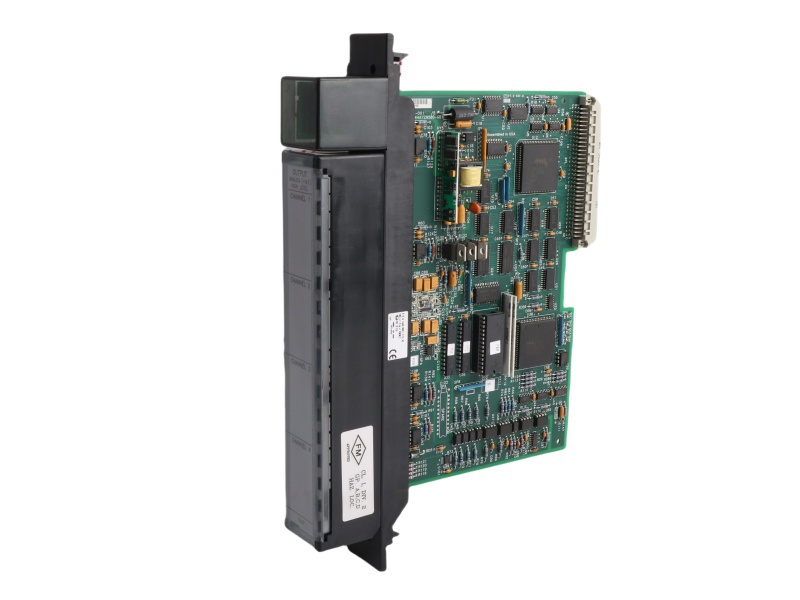

GE Fanuc IC697ALG320 High-level Analog Output Module

Inquiry now

IC697ALG320 Product datasheet

Model number:	IC697ALG320	Module Type：	Analog Output Module
Manufacture:	GE	Condition：	Brand New
Range of Product:	Series 90-70	Lead time：	In Stock
Weight:	0.66 kg	HS CODE：	8537101190
Dimension:	4x22x29.3cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC697ALG320 Functional Description

The IC697ALG320 is a high-performance 4-channel analog output module designed for use with the GE Fanuc Series 90-70 Programmable Logic Controllers (PLCs). Unlike Emerson Automation, GE Fanuc originally manufactured this module. It occupies a single slot in a 5-slot or 10-slot baseplate, drawing a maximum of 1.66A (8.3 Watts) at 5VDC and 150mA from the user power supply. The IC697ALG320 high-performance 4-channel analog output module is capable of outputting both voltage and current signals, specifically 0-20 mA or 4-20 mA for current output, and ±10VDC for voltage output. Each of its four output channels is individually configurable, allowing users to set the module for either current or voltage operation.

The IC697ALG320 high-performance 4-channel analog output module features a 16-bit digital-to-analog converter (DAC) with high resolution—312.5 microvolts per LSB step for voltage and 0.5 microamps per LSB step for current outputs. It operates with a maximum conversion rate of 2.0 milliseconds for all output channels. The module is factory calibrated, and its calibration data is stored in non-volatile EEPROM memory. Additionally, it supports diagnostic features such as overrange, underrange, and open-wire detection, as well as configuration and module health monitoring.

For voltage operation, the IC697ALG320 high-performance 4-channel analog output module supports resistive loads of up to 2000 ohms and capacitive loads up to 1000 picofarads. In current operation, it supports up to 700 ohms for resistive loads, 1.0 microfarad for capacitive loads, and 250 milliHenry for inductive loads. The module's accuracy is temperature-dependent, with a coefficient of 25 PPM per degree Celsius for voltage and 50 PPM per degree Celsius for current.

Ideal for industrial applications, the IC697ALG320 high-performance 4-channel analog output module allows users to connect up to seven units in a CPU rack and eight in an expansion rack, enabling scalable solutions with up to 252 output channels. The configuration software enables output range selection, user scaling, and fault reporting, making this module versatile for various control and automation needs.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IC693ACC310	GE	IS220PPDAH1B	GE	IS220PAICH2A
GE	IC693ACC302	GE	IS220PPDAH1A	GE	IS220PAICH1A
GE	IC676PBO082	GE	IS220PGENH1AE	GE	IS230JPDMG1B
GE	IC693ALG442	GE	IS220PDOAH1B	GE	IS220YDOAS1AJ
GE	IC693ALG391	GE	IS220PDOAH1A	GE	IS220YDOAS1A
GE	IC693ALG222	GE	IS220PDOAH1A	GE	IS220YDIAS1AK
GE	IC676PBI008	GE	IS220PDIAH1AD	GE	IS220YDIAS1A
GE	IC670PBI001	GE	IS220PDIAH1A	GE	IS220YAICS1A
GE	IC670MDL740	GE	IS220PAOCH1BE	GE	IS220UCSAH1A
GE	IC670GBI102	GE	IS220PAOCH1A	GE	IS220PVIBH1A

Series 90-70 PLC

With our CPX family of CPUs, the Series 90-70 offers more for your automation dollar—more computing power, more memory for your applications, and more communications and redundancy capabilities. And it provides increased flexibility for a variety of applications due to a wide range of isolated and high-density VME analog I/O modules.

Open Architecture

Based on the VME-bus standard, the Series 90-70 can be used with thousands of boards produced by hundreds of different manufacturers to build a solution that meets your exact needs. These include links to drives and drive systems, servo motor controllers, embedded solutions for vision systems and bus-to-bus interface modules, as well as a variety of modules available from GE (see accompanying table).

Various Degrees of Redundancy

Combining the Series 90-70 with the advanced functionality of Genius* I/O, GE Genius Modular Redundancy (GMR) systems and Hot Standby systems can provide as much or as little redundancy as you need for your critical applications.

• The versatility and strength of the GMR system make it an ideal choice for rigorous emergency shutdown and human life protection systems. It has a class 6 TÜV rating.

• Based on three isolated PLCs and extensive diagnostics, the GMR triple modular redundancy system uses two-out-of-three voting to provide high reliability and errorfree operation.

• CPU Genius Redundancy (CGR) systems achieve enhanced hot standby CPU redundancy by connecting two power supplies and two CGR CPUs to one or more Genius I/O networks.
