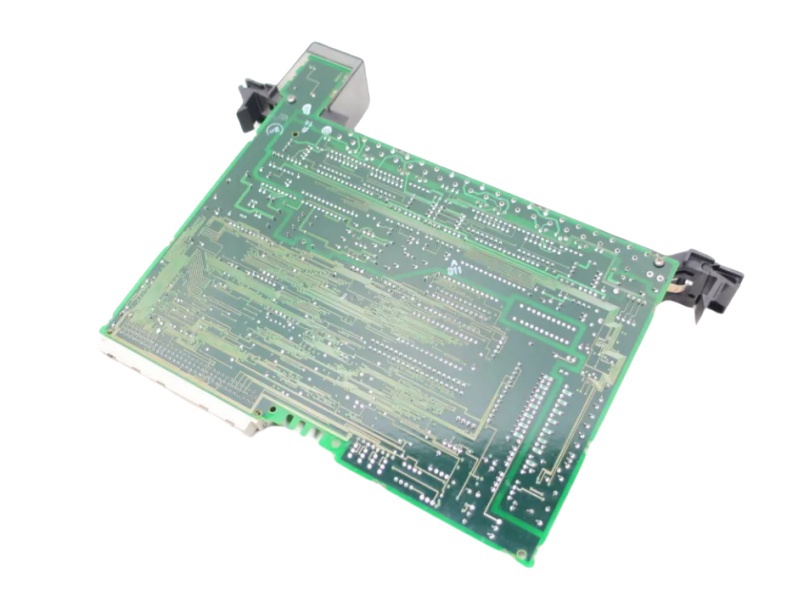

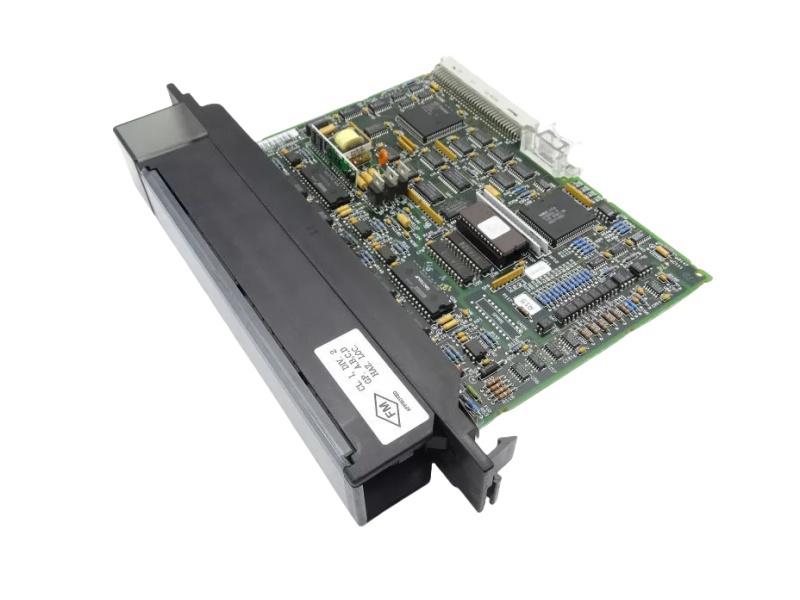

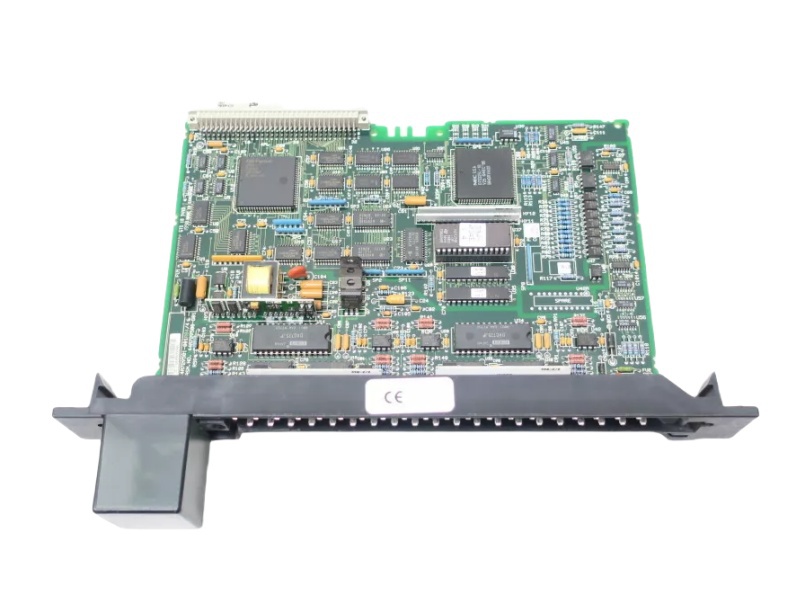

IC697ALG321 Product datasheet
|
Model number: |
IC697ALG321 |
|
Module Type： |
Analog Input Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Series 90-30 |
|
Lead time： |
In Stock |
|
Weight: |
0.42 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4x22x29.1cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC697ALG321 Functional Description
The IC697ALG321 Analog Input Module is a high-performance device from GE Fanuc, designed for use with the Series 90-30 PLC (Programmable Logic Controller) family. This module supports both unipolar and bipolar voltage input ranges, providing flexibility for a variety of applications. With the IC697ALG321 Analog Input Module, users can set alarm limits for both high and low voltage thresholds, ensuring that critical conditions are monitored. Configuration of the module is streamlined through MS-DOS software, which allows users to set parameters such as channel configuration, alarm settings, and I/O scan configurations.
The IC697ALG321 Analog Input Module converts incoming analog signals into digital data using a 12-bit converter, which is then stored in the CPU of the PLC in a 2's complement format. The module features an input filter response frequency of 41 Hz in single-ended mode and 82 Hz in differential mode, optimizing signal integrity. To improve resolution and accuracy, the converted data is stored in a 16-bit word format. The CPU processes the data without modification, directly converting and storing it as required.
Users can perform module configuration easily through the Logicmaster software or a handheld programmer. However, it's important to note that the handheld programmer cannot configure active scanned channels. All configuration data is saved in the EEPROM of the PLC's CPU. Overall, the IC697ALG321 Analog Input Module is a versatile, high-precision component that provides reliable analog-to-digital conversion for GE PLC systems.
