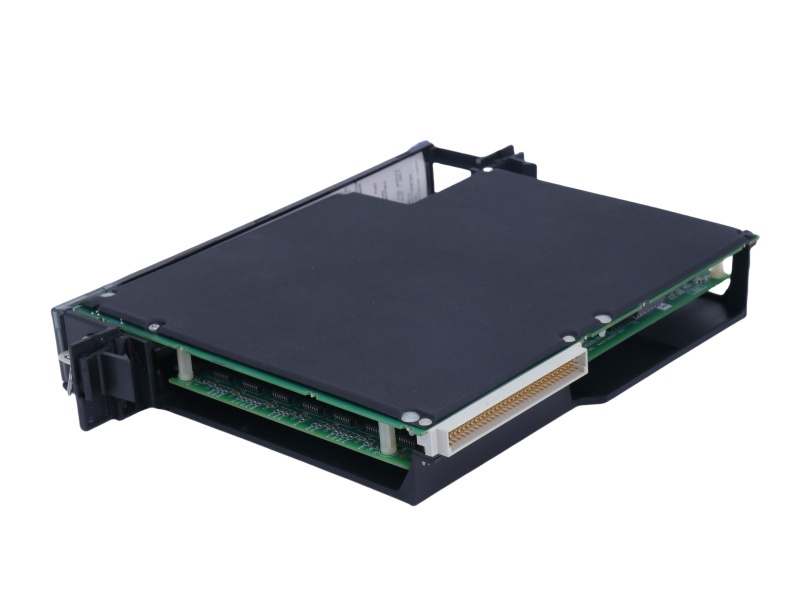

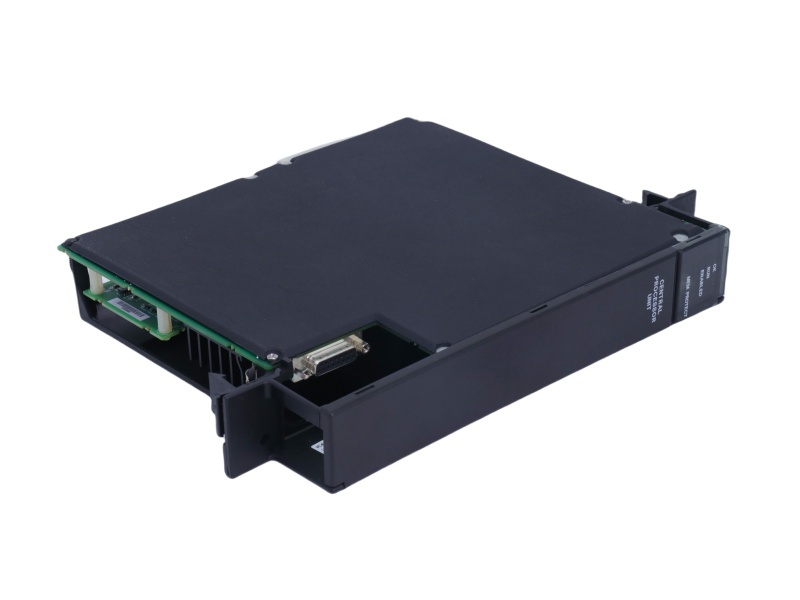

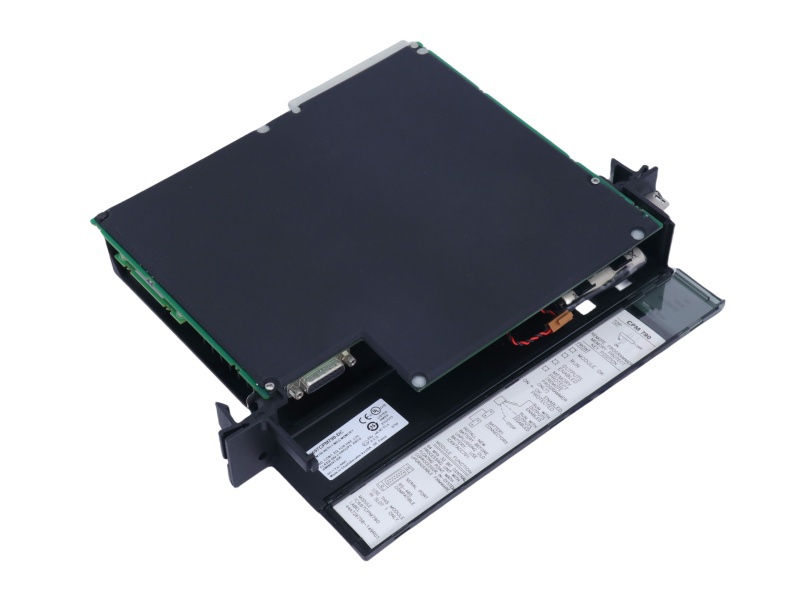

GE Fanuc IC697CPM790 GMR Redundant CPU

Inquiry now

IC697CPM790 Product datasheet

Model number:	IC697CPM790	Module Type：	Central Processing Unit
Manufacture:	GE	Condition：	Brand New
Range of Product:	Series 90-70	Lead time：	In Stock
Weight:	0.8 kg	HS CODE：	8537101190
Dimension:	4x21.8x29.1cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC697CPM790 Functional Description

The IC697CPM790 is a high-performance programmable logic controller (PLC) CPU, designed for critical industrial applications that require reliability and high processing speeds. With 1 MB of battery-backed memory, the IC697CPM790 programmable logic controller (PLC) CPU offers up to 512 KB of memory for user programs, which can be configured using ladder diagram programming. This CPU is capable of handling up to 12,000 discrete I/O points in simplex mode, and can process 2048 discrete inputs and outputs. Additionally, it supports up to 8,000 analog I/O points, providing flexibility in a wide range of automation tasks.

Equipped with a 64 MHz 80486DX2 microprocessor, the IC697CPM790 programmable logic controller (PLC) CPU delivers a fast scan rate of 0.4 microseconds per boolean function, making it suitable for demanding, time-critical operations. It also supports Triple Modular Redundancy (TMR), which enhances system uptime by using three redundant PLC racks, each containing one IC697CPM790 programmable logic controller (PLC) CPU. This setup is ideal for high-availability applications, ensuring that operations continue smoothly even in the event of hardware failure.

For communication, the IC697CPM790 programmable logic controller (PLC) CPU includes a 15-pin sub-D connector for RS485 devices, with additional options for connecting to programming computers via RS-422/RS-485 to RS-232 converters. This CPU is compatible with a variety of I/O modules and smart option modules within the same PLC system.

The IC697CPM790 programmable logic controller (PLC) CPU is well-suited for critical safety applications, including fire and gas detection, emergency shutdown systems, and other industrial control tasks. It requires a Standalone C program for operations, including TMR, autotest, and other routine tasks, ensuring that the system runs efficiently and without downtime. With features like password-controlled access, status LEDs, and a calendar clock, the IC697CPM790 programmable logic controller (PLC) CPU provides comprehensive control for industrial automation needs.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IC693ACC310	GE	IS220PPDAH1B	GE	IS220PAICH2A
GE	IC693ACC302	GE	IS220PPDAH1A	GE	IS220PAICH1A
GE	IC676PBO082	GE	IS220PGENH1AE	GE	IS230JPDMG1B
GE	IC693ALG442	GE	IS220PDOAH1B	GE	IS220YDOAS1AJ
GE	IC693ALG391	GE	IS220PDOAH1A	GE	IS220YDOAS1A
GE	IC693ALG222	GE	IS220PDOAH1A	GE	IS220YDIAS1AK
GE	IC676PBI008	GE	IS220PDIAH1AD	GE	IS220YDIAS1A
GE	IC670PBI001	GE	IS220PDIAH1A	GE	IS220YAICS1A
GE	IC670MDL740	GE	IS220PAOCH1BE	GE	IS220UCSAH1A
GE	IC670GBI102	GE	IS220PAOCH1A	GE	IS220PVIBH1A

Series 90-70 PLC

With our CPX family of CPUs, the Series 90-70 offers more for your automation dollar—more computing power, more memory for your applications, and more communications and redundancy capabilities. And it provides increased flexibility for a variety of applications due to a wide range of isolated and high-density VME analog I/O modules.

Open Architecture

Based on the VME-bus standard, the Series 90-70 can be used with thousands of boards produced by hundreds of different manufacturers to build a solution that meets your exact needs. These include links to drives and drive systems, servo motor controllers, embedded solutions for vision systems and bus-to-bus interface modules, as well as a variety of modules available from GE (see accompanying table).

Various Degrees of Redundancy

Combining the Series 90-70 with the advanced functionality of Genius* I/O, GE Genius Modular Redundancy (GMR) systems and Hot Standby systems can provide as much or as little redundancy as you need for your critical applications.

• The versatility and strength of the GMR system make it an ideal choice for rigorous emergency shutdown and human life protection systems. It has a class 6 TÜV rating.

• Based on three isolated PLCs and extensive diagnostics, the GMR triple modular redundancy system uses two-out-of-three voting to provide high reliability and errorfree operation.

• CPU Genius Redundancy (CGR) systems achieve enhanced hot standby CPU redundancy by connecting two power supplies and two CGR CPUs to one or more Genius I/O networks.
