IC697CPM915 Product datasheet
Model number: |
IC697CPM915 |
|
Module Type: |
Central Processing Unit |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
Series 90-70 |
|
Lead time: |
In Stock |
Weight: |
0.8 kg |
|
HS CODE: |
8537101190 |
Dimension: |
4x21.8x29.3cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
PLC |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |

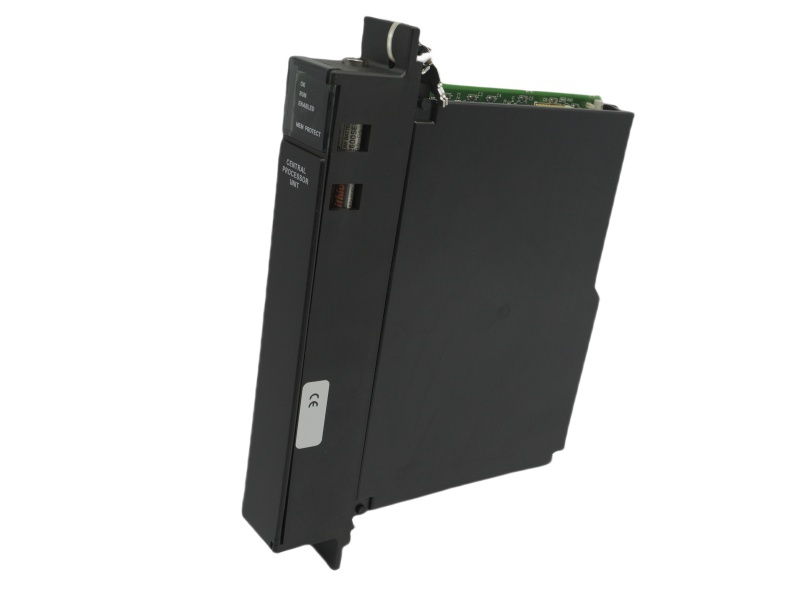

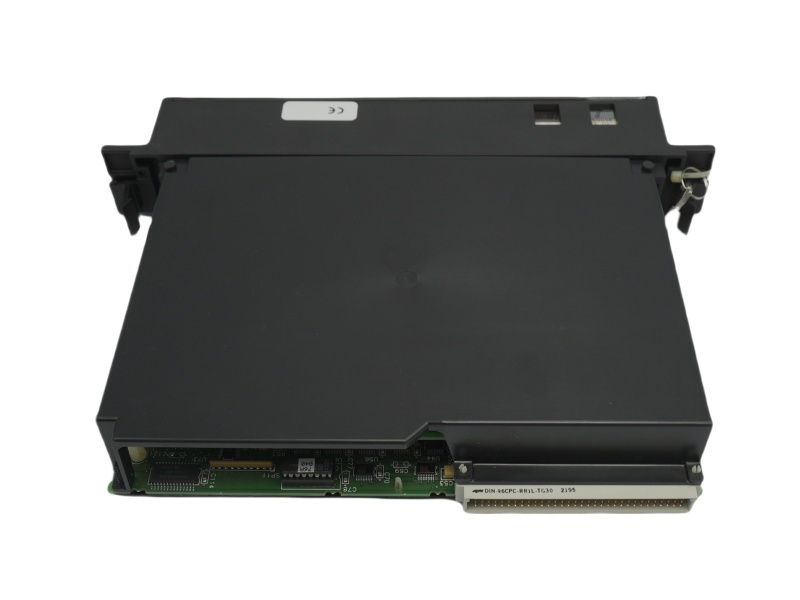

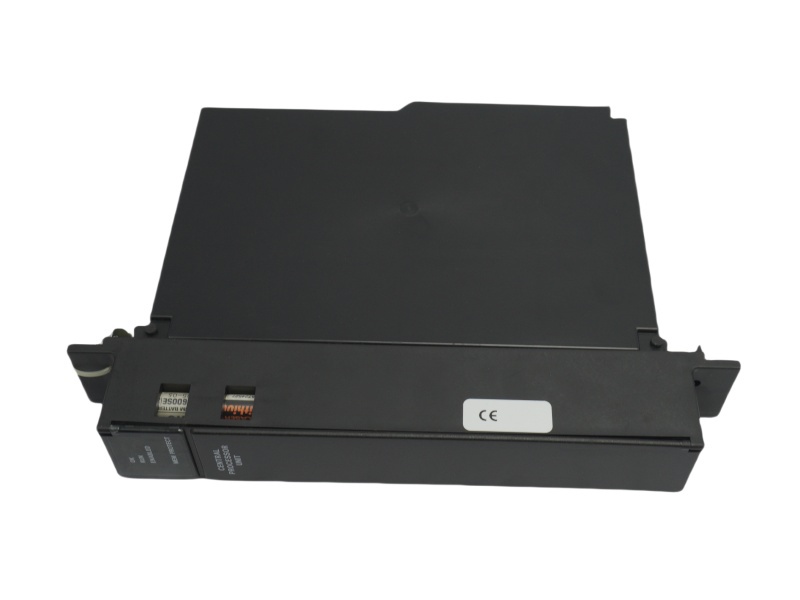

IC697CPM915 Functional Description
The IC697CPM915 is a single-slot programmable CPU module from GE Fanuc, designed to handle material handling systems, machinery, and various processes. Configuring the IC697CPM915 single-slot programmable CPU module can be done using either Windows or MS-DOS based software. Communication with the CPU is facilitated over Ethernet or through the SNP port, with the Ethernet connection requiring an optional Ethernet module. The IC697CPM915 single-slot programmable CPU module interacts with I/O modules and other option modules through the rack's backplane, utilizing the VME C.1 standard format for data transmission.
This IC697CPM915 single-slot programmable CPU module is compatible with various racks, including the IC697CHS750, IC697CHS782, IC697CHS783, IC697CHS790, and IC697CHS791, and must be installed in slot 1. The CPU’s operation can be controlled via the RUN/STOP switch or remotely through a connected programmer using the RS-422/RS-485 serial port. The IC697CPM915 single-slot programmable CPU module features four green LEDs to indicate the operational status of the CPU, and its 32 MHz processor supports floating-point operations, making it a powerful option for control tasks.
With 1 MB of user memory and a lithium battery that provides backup for up to six months without power, the IC697CPM915 single-slot programmable CPU module ensures data retention. Flash memory stores system firmware, while the module's nominal current consumption is 2.8 Amps from the 5V DC bus. The IC697CPM915 single-slot programmable CPU module is designed for use with GE Fanuc Series 60-70 PLC systems and supports a wide range of option modules, including IC697 LAN modules and coprocessor modules, which provide further flexibility for I/O operations.
If you have other request contact our team to get customized service
GE |
IC693ACC310 |
GE |
IS220PPDAH1B |
GE |
IS220PAICH2A |
GE |
IC693ACC302 |
GE |
IS220PPDAH1A |
GE |
IS220PAICH1A |
GE |
IC676PBO082 |
GE |
IS220PGENH1AE |
GE |
IS230JPDMG1B |
GE |
IC693ALG442 |
GE |
IS220PDOAH1B |
GE |
IS220YDOAS1AJ |
GE |
IC693ALG391 |
GE |
IS220PDOAH1A |
GE |
IS220YDOAS1A |
GE |
IC693ALG222 |
GE |
IS220PDOAH1A |
GE |
IS220YDIAS1AK |
GE |
IC676PBI008 |
GE |
IS220PDIAH1AD |
GE |
IS220YDIAS1A |
GE |
IC670PBI001 |
GE |
IS220PDIAH1A |
GE |
IS220YAICS1A |
GE |
IC670MDL740 |
GE |
IS220PAOCH1BE |
GE |
IS220UCSAH1A |
GE |
IC670GBI102 |
GE |
IS220PAOCH1A |
GE |
IS220PVIBH1A |
Series 90-70 PLC
With our CPX family of CPUs, the Series 90-70 offers more for your automation dollar—more computing power, more memory for your applications, and more communications and redundancy capabilities. And it provides increased flexibility for a variety of applications due to a wide range of isolated and high-density VME analog I/O modules.
Open Architecture
Based on the VME-bus standard, the Series 90-70 can be used with thousands of boards produced by hundreds of different manufacturers to build a solution that meets your exact needs. These include links to drives and drive systems, servo motor controllers, embedded solutions for vision systems and bus-to-bus interface modules, as well as a variety of modules available from GE (see accompanying table).
Various Degrees of Redundancy
Combining the Series 90-70 with the advanced functionality of Genius* I/O, GE Genius Modular Redundancy (GMR) systems and Hot Standby systems can provide as much or as little redundancy as you need for your critical applications.
• The versatility and strength of the GMR system make it an ideal choice for rigorous emergency shutdown and human life protection systems. It has a class 6 TÜV rating.
• Based on three isolated PLCs and extensive diagnostics, the GMR triple modular redundancy system uses two-out-of-three voting to provide high reliability and errorfree operation.
• CPU Genius Redundancy (CGR) systems achieve enhanced hot standby CPU redundancy by connecting two power supplies and two CGR CPUs to one or more Genius I/O networks.
