IC697CPU731 Product datasheet
|
Model number: |
IC697CPU731 |
|
Module Type： |
Central Processing Unit |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Series 90-70 |
|
Lead time： |
In Stock |
|
Weight: |
0.5 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4x21.8x29.1cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC697CPU731 Functional Description

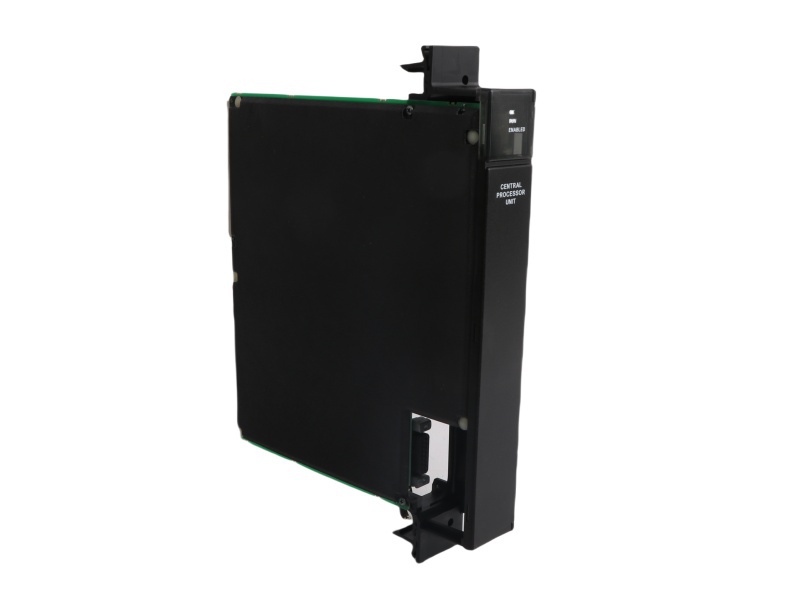

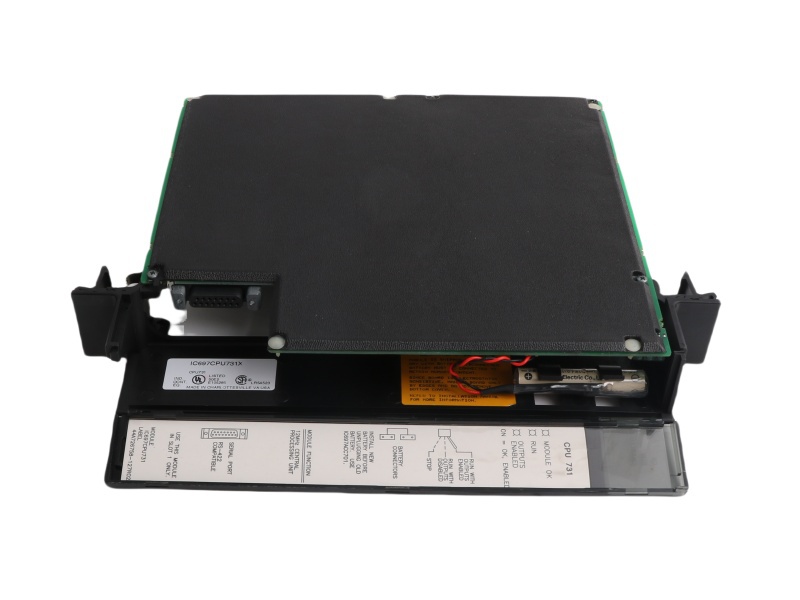

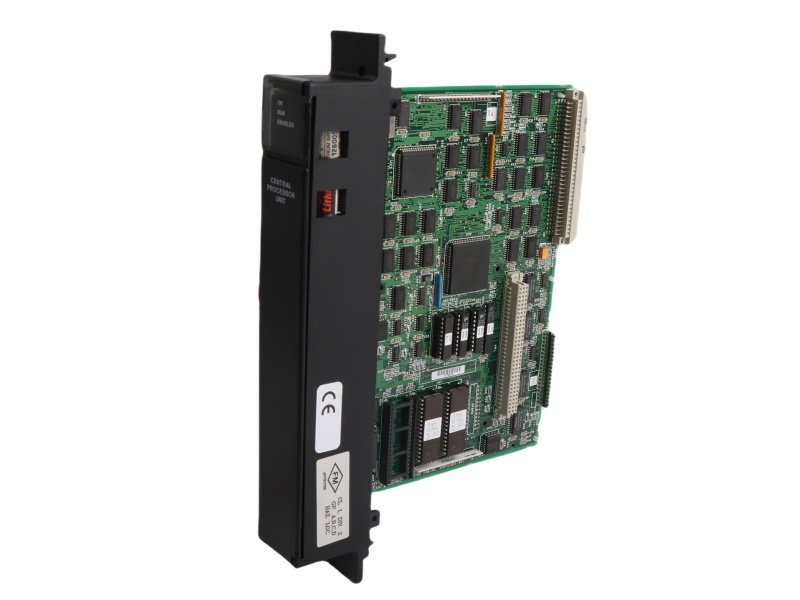

The GE Fanuc IC697CPU731 Central Processing Unit is an integral part of the Series 90-70 product line, designed for use in programmable logic controller (PLC) systems. This single-slot CPU is installed into a PLC baseplate, requiring only one slot for secure placement and optimal operation. The primary function of the IC697CPU731 is to process data from up to 512 inputs and outputs, which can be configured in any combination. Additionally, it supports up to 8000 analog I/O points, making it highly versatile for various industrial applications.
Powered by an 80C186 microprocessor running at 12 MHz, the IC697CPU731 Central Processing Unit offers solid processing capabilities to handle complex tasks. Users can configure the data and program memory to suit specific operational needs, providing flexibility for different automation requirements.
The IC697CPU731 Central Processing Unit can be programmed using either DOS or Windows-based software, allowing for real-time control of material handling systems and other process applications. The CPU communicates with connected I/O modules and smart option modules via the PLC's backplane, ensuring seamless integration with additional components. Compatible modules include communications modules, coprocessor modules, and IC697 LAN interface modules, as well as discrete and analog I/O modules.
The operation of the CPU and modules can be controlled either manually through a switch with three positions or remotely via a connected programmer and software. For installation, the IC697CPU731 Central Processing Unit must be placed in the PLC baseplate when the system is powered off, and the battery should be connected to the designated battery connectors. This setup ensures reliable operation and data retention during power outages.
In conclusion, the IC697CPU731 Central Processing Unit is a powerful, flexible CPU module that is ideal for handling complex industrial automation tasks, offering ease of integration and configuration.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693ACC310 |
GE |
IS220PPDAH1B |
GE |
IS220PAICH2A |
|
GE |
IC693ACC302 |
GE |
IS220PPDAH1A |
GE |
IS220PAICH1A |
|
GE |
IC676PBO082 |
GE |
IS220PGENH1AE |
GE |
IS230JPDMG1B |
|
GE |
IC693ALG442 |
GE |
IS220PDOAH1B |
GE |
IS220YDOAS1AJ |
|
GE |
IC693ALG391 |
GE |
IS220PDOAH1A |
GE |
IS220YDOAS1A |
|
GE |
IC693ALG222 |
GE |
IS220PDOAH1A |
GE |
IS220YDIAS1AK |
|
GE |
IC676PBI008 |
GE |
IS220PDIAH1AD |
GE |
IS220YDIAS1A |
|
GE |
IC670PBI001 |
GE |
IS220PDIAH1A |
GE |
IS220YAICS1A |
|
GE |
IC670MDL740 |
GE |
IS220PAOCH1BE |
GE |
IS220UCSAH1A |
|
GE |
IC670GBI102 |
GE |
IS220PAOCH1A |
GE |
IS220PVIBH1A |
Series 90-70 PLC
With our CPX family of CPUs, the Series 90-70 offers more for your automation dollar—more computing power, more memory for your applications, and more communications and redundancy capabilities. And it provides increased flexibility for a variety of applications due to a wide range of isolated and high-density VME analog I/O modules.
Open Architecture
Based on the VME-bus standard, the Series 90-70 can be used with thousands of boards produced by hundreds of different manufacturers to build a solution that meets your exact needs. These include links to drives and drive systems, servo motor controllers, embedded solutions for vision systems and bus-to-bus interface modules, as well as a variety of modules available from GE (see accompanying table).
Various Degrees of Redundancy
Combining the Series 90-70 with the advanced functionality of Genius* I/O, GE Genius Modular Redundancy (GMR) systems and Hot Standby systems can provide as much or as little redundancy as you need for your critical applications.
• The versatility and strength of the GMR system make it an ideal choice for rigorous emergency shutdown and human life protection systems. It has a class 6 TÜV rating.
• Based on three isolated PLCs and extensive diagnostics, the GMR triple modular redundancy system uses two-out-of-three voting to provide high reliability and errorfree operation.
• CPU Genius Redundancy (CGR) systems achieve enhanced hot standby CPU redundancy by connecting two power supplies and two CGR CPUs to one or more Genius I/O networks.
