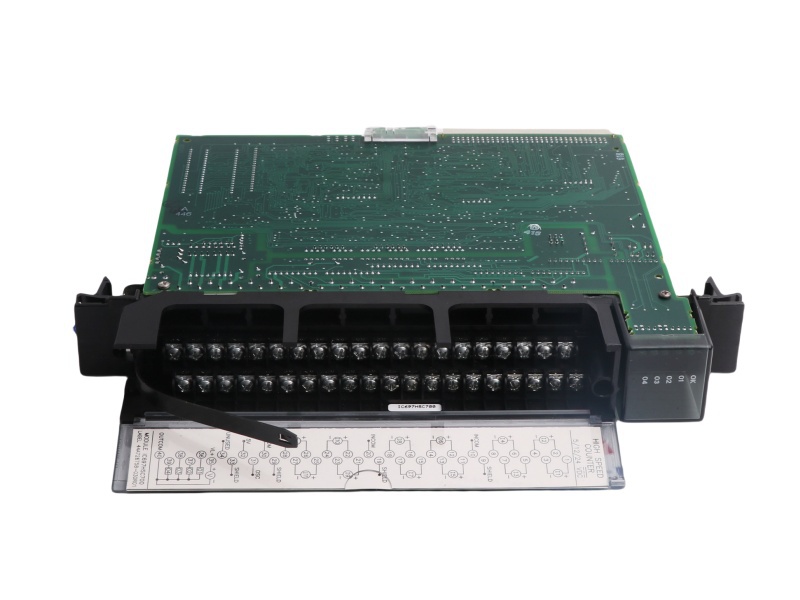

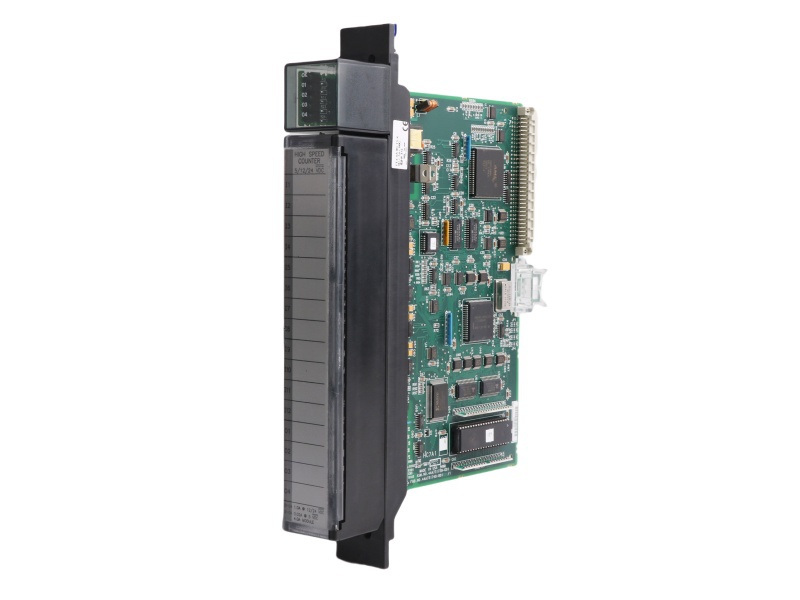

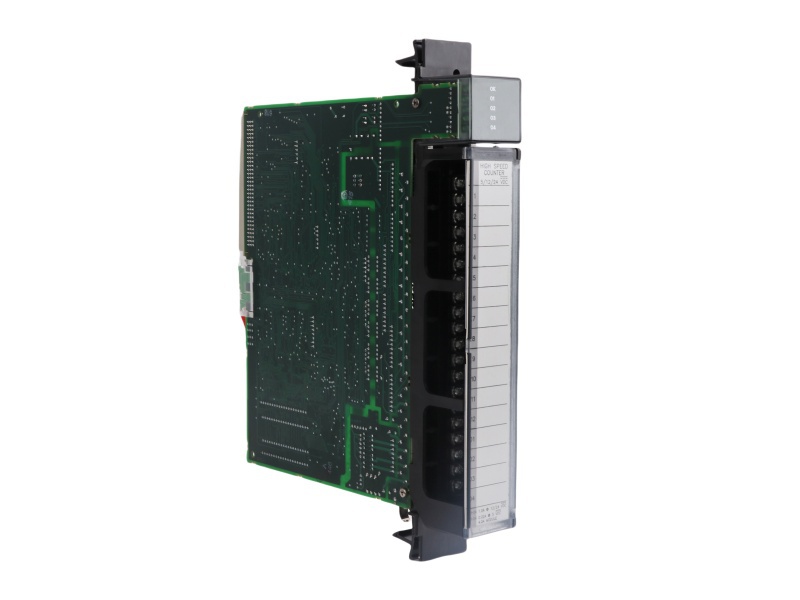

GE Fanuc IC697HSC700 High-Speed Counter (HSC) Module

Inquiry now

IC697HSC700 Product datasheet

Model number:	IC697HSC700	Module Type：	High-Speed Counter (HSC) Module
Manufacture:	GE	Condition：	Brand New
Range of Product:	Series 90-70	Lead time：	In Stock
Weight:	0.62 kg	HS CODE：	8537101190
Dimension:	4x21.8x29.3cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC697HSC700 Functional Description

The IC697HSC700 is a High-Speed Counter (HSC) module that was originally manufactured by GE Fanuc Automation and is now part of Emerson Automation. This versatile module is designed to interface with high-speed switching signals, with frequency capabilities of 200 kHz in Up/Down Quad mode (Types A, D, and E) and up to 800 kHz in Quad B mode (Type E). The IC697HSC700 is installed into a single I/O slot on the CPU baseplate, expansion, or remote baseplate.

Equipped with 12 single-ended or differential inputs, the IC697HSC700 High-Speed Counter (HSC) module operates with both 5VDC and 10-30 VDC voltage ranges. It also features four positive logic outputs, each delivering 20 mA at 10-30 VDC. This module is particularly suitable for applications in turbine flowmeter control, meter proving, velocity measurement, material handling, and motion and position control. For operation, the IC697HSC700 requires a Series 90-70 IC697CPU with firmware version 5.0 or later and compatible programming software, such as Logicmaster 90-70 (version 5.0x or later) or modern Windows-based tools like VersaPro and Proficy Machine Edition.

The IC697HSC700 High-Speed Counter (HSC) module also includes LED status indicators for module and output circuit diagnostics. With an input/output isolation rating of 1500 V for 1 second and 30 VAC/VDC steady state, this module is robust for industrial environments. It draws 1 Ampere of backplane current plus an additional 10 mA for every active output. The outputs are powered by a user-supplied 5 VDC or 10-30 VDC supply.

In addition to its high-speed counting capabilities, the IC697HSC700 High-Speed Counter (HSC) module supports configuration and programming through both Windows and MS-DOS operating systems, connecting via SNP or Ethernet TCP/IP ports. This makes it ideal for high-speed pulse processing, such as those encountered in industrial applications like meter proving, motion control, and process automation.
