IC697MDL340 Product datasheet
|
Model number: |
IC697MDL340 |
|
Module Type： |
Discrete Output Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Series 90-70 |
|
Lead time： |
In Stock |
|
Weight: |
0.62 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4x21.8x29.3cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |

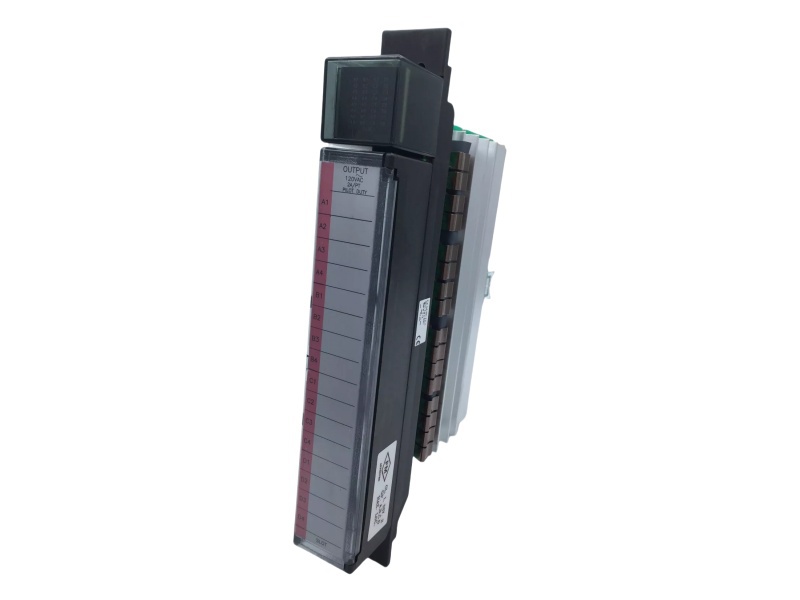

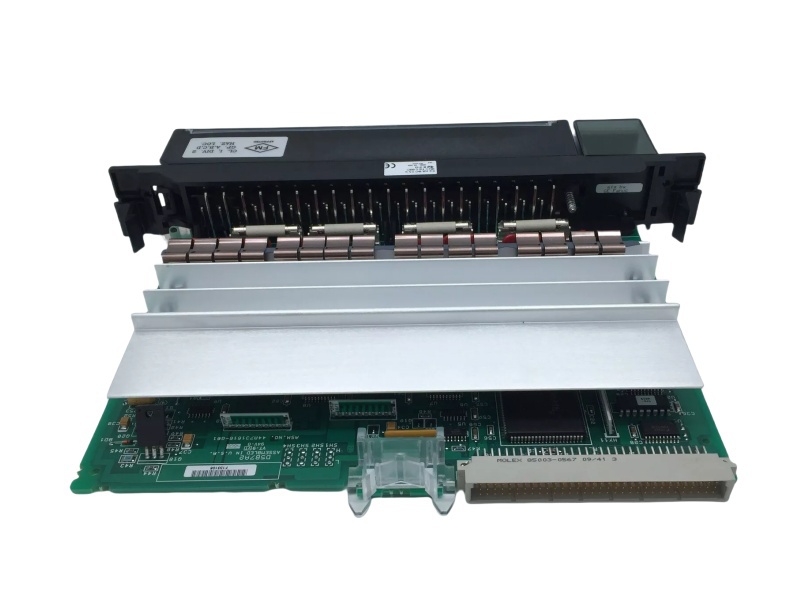

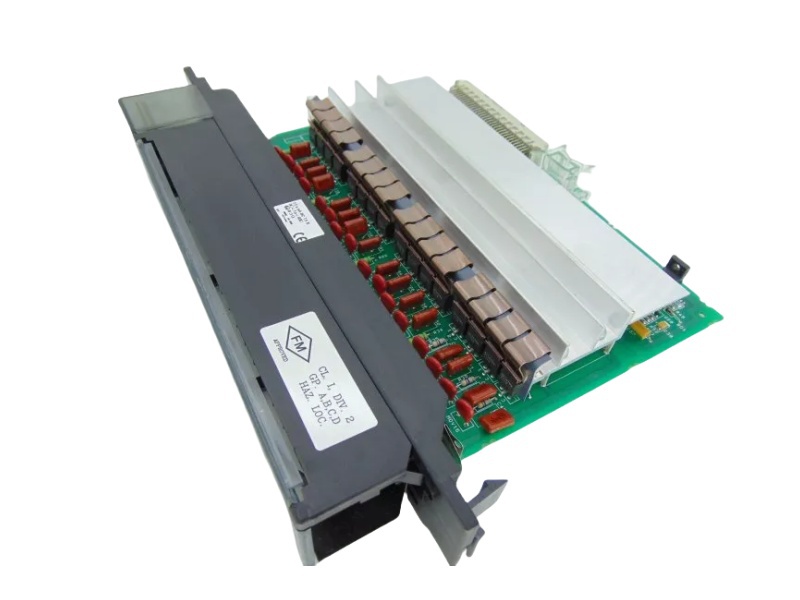

IC697MDL340 Functional Description
The IC697MDL340 output module, part of the Series 90-70 family from GE Intelligent Platforms/GE Fanuc, is a robust solution designed for industrial applications. Operating at 120 Volts AC, the IC697MDL340 output module features 16 output points, divided into 4 isolated groups of 4 points each. Each group can handle up to 4 Amps, with each individual point supporting 2 Amps, providing reliable performance for a variety of applications. The IC697MDL340 output module is especially suitable for loads requiring high inrush current, such as incandescent and inductive devices. Each output group is fused separately with a 10 Amp fuse, ensuring the module's durability and protecting the circuits from overloads.
One of the key benefits of the IC697MDL340 output module is its versatility; it can work with most Size 4 contactors and is equipped with LED indicators to show the status of each point, as well as the fuse status. The mechanical keying feature of the IC697MDL340 output module ensures proper replacement of the module, reducing the risk of mismatches in the field. Additionally, the IC697MDL340 output module allows for easy configuration of I/O references without the need for jumpers or DIP switches, streamlining installation and setup.
Designed to work with a variety of load devices, including motor starters, solenoids, and indicators, the IC697MDL340 output module is an ideal choice for applications requiring dependable, high-power output in industrial environments. The combination of its high inrush current capacity, reliable fuse protection, and easy configuration options makes the IC697MDL340 output module a versatile and powerful output solution for industrial control systems.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693ACC310 |
GE |
IS220PPDAH1B |
GE |
IS220PAICH2A |
|
GE |
IC693ACC302 |
GE |
IS220PPDAH1A |
GE |
IS220PAICH1A |
|
GE |
IC676PBO082 |
GE |
IS220PGENH1AE |
GE |
IS230JPDMG1B |
|
GE |
IC693ALG442 |
GE |
IS220PDOAH1B |
GE |
IS220YDOAS1AJ |
|
GE |
IC693ALG391 |
GE |
IS220PDOAH1A |
GE |
IS220YDOAS1A |
|
GE |
IC693ALG222 |
GE |
IS220PDOAH1A |
GE |
IS220YDIAS1AK |
|
GE |
IC676PBI008 |
GE |
IS220PDIAH1AD |
GE |
IS220YDIAS1A |
|
GE |
IC670PBI001 |
GE |
IS220PDIAH1A |
GE |
IS220YAICS1A |
|
GE |
IC670MDL740 |
GE |
IS220PAOCH1BE |
GE |
IS220UCSAH1A |
|
GE |
IC670GBI102 |
GE |
IS220PAOCH1A |
GE |
IS220PVIBH1A |
Series 90-70 PLC
With our CPX family of CPUs, the Series 90-70 offers more for your automation dollar—more computing power, more memory for your applications, and more communications and redundancy capabilities. And it provides increased flexibility for a variety of applications due to a wide range of isolated and high-density VME analog I/O modules.
Open Architecture
Based on the VME-bus standard, the Series 90-70 can be used with thousands of boards produced by hundreds of different manufacturers to build a solution that meets your exact needs. These include links to drives and drive systems, servo motor controllers, embedded solutions for vision systems and bus-to-bus interface modules, as well as a variety of modules available from GE (see accompanying table).
Various Degrees of Redundancy
Combining the Series 90-70 with the advanced functionality of Genius* I/O, GE Genius Modular Redundancy (GMR) systems and Hot Standby systems can provide as much or as little redundancy as you need for your critical applications.
• The versatility and strength of the GMR system make it an ideal choice for rigorous emergency shutdown and human life protection systems. It has a class 6 TÜV rating.
• Based on three isolated PLCs and extensive diagnostics, the GMR triple modular redundancy system uses two-out-of-three voting to provide high reliability and errorfree operation.
• CPU Genius Redundancy (CGR) systems achieve enhanced hot standby CPU redundancy by connecting two power supplies and two CGR CPUs to one or more Genius I/O networks.
