IC697MDL740 Product datasheet
|
Model number: |
IC697MDL740 |
|
Module Type： |
Relay Output Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Series 90-70 |
|
Lead time： |
In Stock |
|
Weight: |
0.66 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4x22x29.1cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |

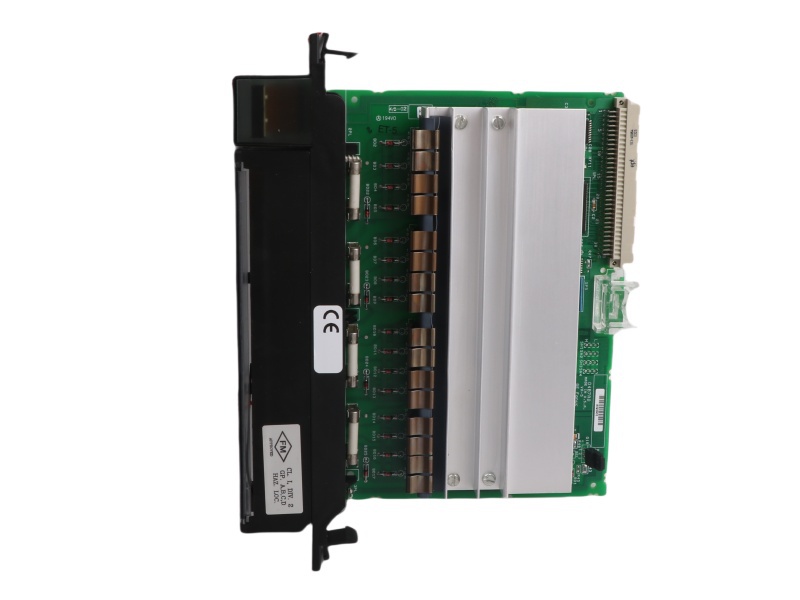

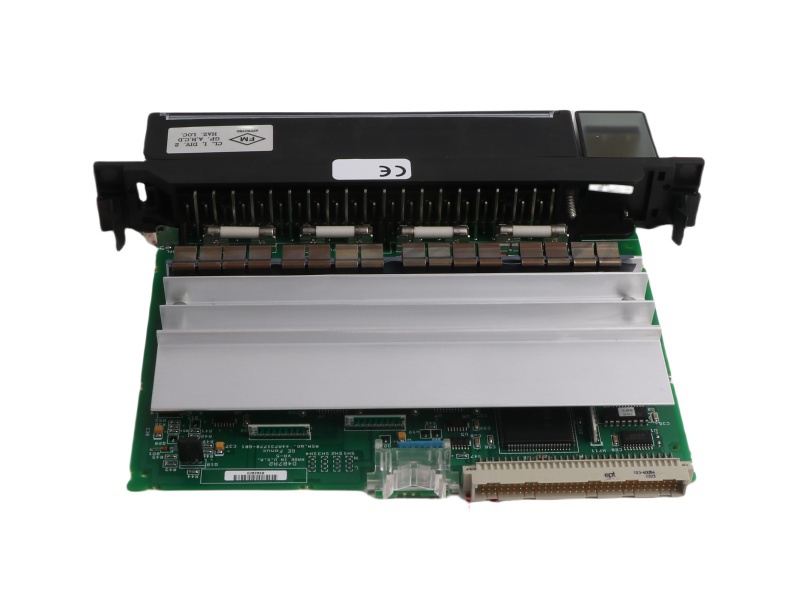

IC697MDL740 Functional Description
The IC697MDL740 is a discrete output module from GE Fanuc, commonly used with the GE Series 90-70 PLC lineup. This module is designed to enhance PLC system performance, offering 16 output points that operate within a voltage range of 20 to 60 Volts DC. Each output point supports a current of 2 Amps, while the total output group can handle up to 4 Amps. A standout feature of the IC697MDL740 discrete output module is its fast response time, with a reaction speed of just 2 milliseconds and a voltage drop of less than 1 Volt.
The module is built to handle high inrush currents—up to 10 times its rated current—making it suitable for a variety of loads. It also includes LED indicators on the top of the unit, providing real-time status updates on fuse conditions and device operation. The IC697MDL740 discrete output module ensures safety with a keying technology that prevents the installation of incompatible modules, ensuring system reliability.
Configuration of the IC697MDL740 discrete output module is user-friendly, and adjustments can be made through a PC running Windows. For additional protection, an optional conformal coating is available, providing extra durability. Additional factory options can also be selected to meet specific application needs. This versatile output module is essential for improving machine performance and maintaining efficient operation within PLC-controlled systems.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693ACC310 |
GE |
IS220PPDAH1B |
GE |
IS220PAICH2A |
|
GE |
IC693ACC302 |
GE |
IS220PPDAH1A |
GE |
IS220PAICH1A |
|
GE |
IC676PBO082 |
GE |
IS220PGENH1AE |
GE |
IS230JPDMG1B |
|
GE |
IC693ALG442 |
GE |
IS220PDOAH1B |
GE |
IS220YDOAS1AJ |
|
GE |
IC693ALG391 |
GE |
IS220PDOAH1A |
GE |
IS220YDOAS1A |
|
GE |
IC693ALG222 |
GE |
IS220PDOAH1A |
GE |
IS220YDIAS1AK |
|
GE |
IC676PBI008 |
GE |
IS220PDIAH1AD |
GE |
IS220YDIAS1A |
|
GE |
IC670PBI001 |
GE |
IS220PDIAH1A |
GE |
IS220YAICS1A |
|
GE |
IC670MDL740 |
GE |
IS220PAOCH1BE |
GE |
IS220UCSAH1A |
|
GE |
IC670GBI102 |
GE |
IS220PAOCH1A |
GE |
IS220PVIBH1A |
Series 90-70 PLC
With our CPX family of CPUs, the Series 90-70 offers more for your automation dollar—more computing power, more memory for your applications, and more communications and redundancy capabilities. And it provides increased flexibility for a variety of applications due to a wide range of isolated and high-density VME analog I/O modules.
Open Architecture
Based on the VME-bus standard, the Series 90-70 can be used with thousands of boards produced by hundreds of different manufacturers to build a solution that meets your exact needs. These include links to drives and drive systems, servo motor controllers, embedded solutions for vision systems and bus-to-bus interface modules, as well as a variety of modules available from GE (see accompanying table).
Various Degrees of Redundancy
Combining the Series 90-70 with the advanced functionality of Genius* I/O, GE Genius Modular Redundancy (GMR) systems and Hot Standby systems can provide as much or as little redundancy as you need for your critical applications.
• The versatility and strength of the GMR system make it an ideal choice for rigorous emergency shutdown and human life protection systems. It has a class 6 TÜV rating.
• Based on three isolated PLCs and extensive diagnostics, the GMR triple modular redundancy system uses two-out-of-three voting to provide high reliability and errorfree operation.
• CPU Genius Redundancy (CGR) systems achieve enhanced hot standby CPU redundancy by connecting two power supplies and two CGR CPUs to one or more Genius I/O networks.
