IC697MDL653 Product datasheet
|
Model number: |
IC697MDL653 |
|
Module Type： |
Digital Input Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Series 90-70 |
|
Lead time： |
In Stock |
|
Weight: |
0.62 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4x21.8x29.3cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |

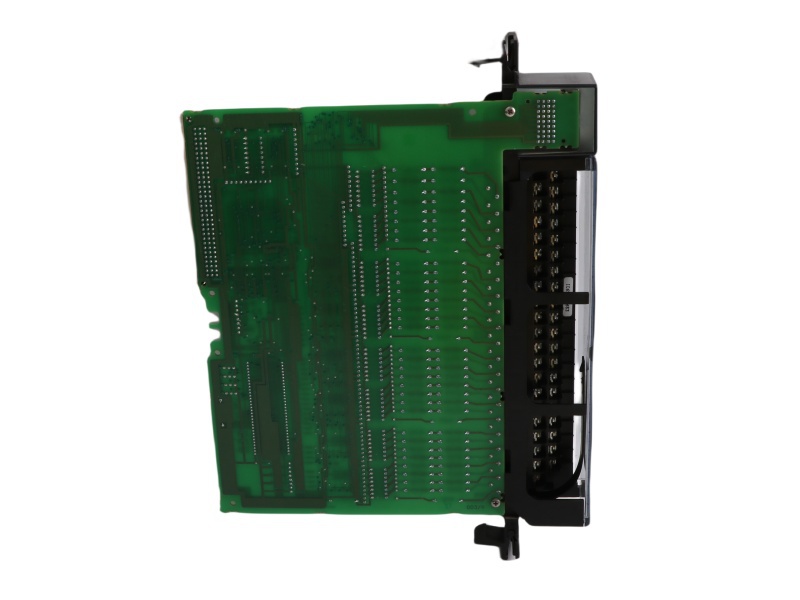

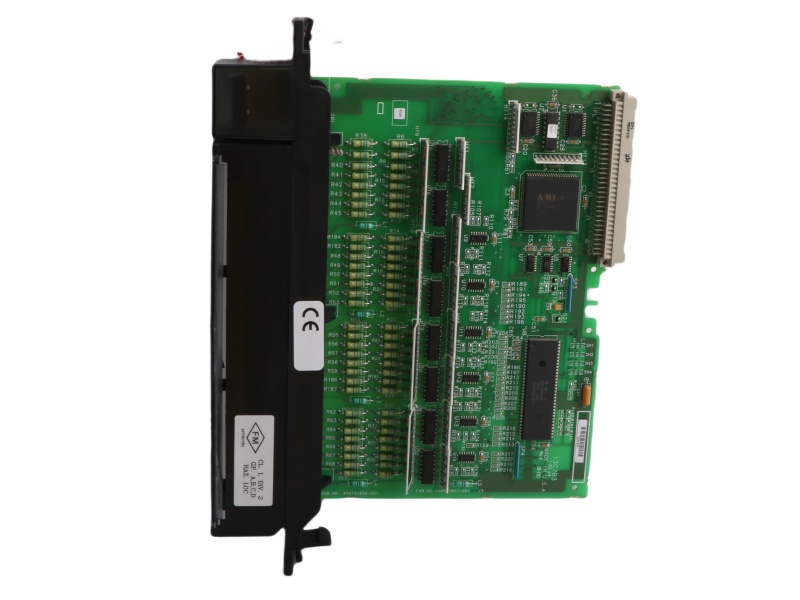

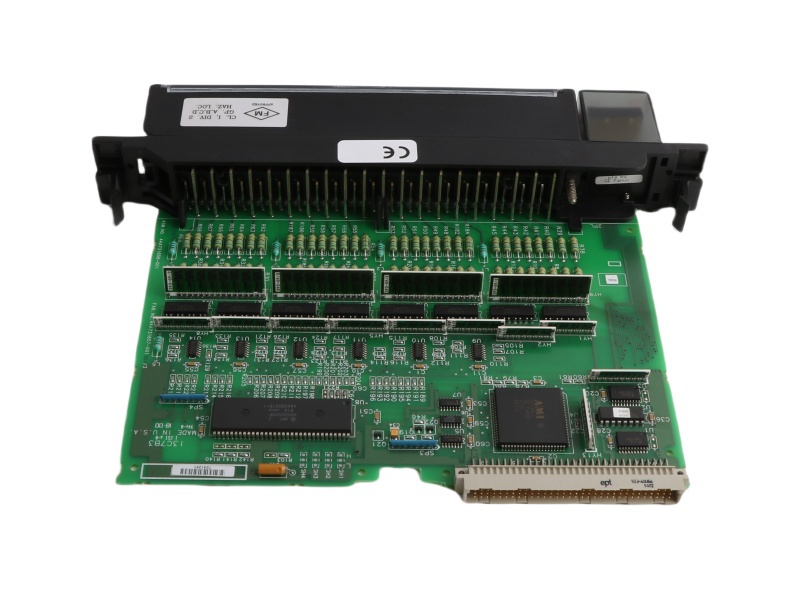

IC697MDL653 Functional Description
The IC697MDL653 is a digital input module designed for the GE Fanuc Series 90-70 Programmable Logic Controllers (PLCs), now part of Emerson Automation. It features 32 discrete input channels, organized into 4 groups of 8 channels each, offering isolation between the groups. This module is compatible with both positive and negative logic wiring and is widely used in applications that require control over proximity switches, pushbuttons, and other input devices.
The IC697MDL653 digital input module operates within a voltage range of -3 to +3 VDC, with a nominal voltage of 24 VDC and an input current of 10 mA at 24 VDC. The module's input impedance is typically 2.6 KOhm, and it features an on-state voltage range of 13.5 to 30 V and an on-state current range of 6 to 15 mA. The off-state voltage is 0 to 5 V, and the off-state current is 0 to 2 mA, with a minimum of 2 mA at 5 V input. Each input channel has a selectable delay time of either 1 ms or 10 ms, which can be configured via software.
The IC697MDL653 digital input module provides significant isolation, with 1500 VDC isolation between channels and the backplane, and 500 VDC isolation between input groups. It draws a current of 300 mA from the 5VDC bus. Additionally, the module features status LEDs for monitoring input activity and supports I/O configuration without the need for external components like DIP switches or jumpers.
Compatible with GE's IC696 PLC product line, the IC697MDL653 digital input module is ideal for applications requiring precise control and monitoring of digital inputs.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693ACC310 |
GE |
IS220PPDAH1B |
GE |
IS220PAICH2A |
|
GE |
IC693ACC302 |
GE |
IS220PPDAH1A |
GE |
IS220PAICH1A |
|
GE |
IC676PBO082 |
GE |
IS220PGENH1AE |
GE |
IS230JPDMG1B |
|
GE |
IC693ALG442 |
GE |
IS220PDOAH1B |
GE |
IS220YDOAS1AJ |
|
GE |
IC693ALG391 |
GE |
IS220PDOAH1A |
GE |
IS220YDOAS1A |
|
GE |
IC693ALG222 |
GE |
IS220PDOAH1A |
GE |
IS220YDIAS1AK |
|
GE |
IC676PBI008 |
GE |
IS220PDIAH1AD |
GE |
IS220YDIAS1A |
|
GE |
IC670PBI001 |
GE |
IS220PDIAH1A |
GE |
IS220YAICS1A |
|
GE |
IC670MDL740 |
GE |
IS220PAOCH1BE |
GE |
IS220UCSAH1A |
|
GE |
IC670GBI102 |
GE |
IS220PAOCH1A |
GE |
IS220PVIBH1A |
Series 90-70 PLC
With our CPX family of CPUs, the Series 90-70 offers more for your automation dollar—more computing power, more memory for your applications, and more communications and redundancy capabilities. And it provides increased flexibility for a variety of applications due to a wide range of isolated and high-density VME analog I/O modules.
Open Architecture
Based on the VME-bus standard, the Series 90-70 can be used with thousands of boards produced by hundreds of different manufacturers to build a solution that meets your exact needs. These include links to drives and drive systems, servo motor controllers, embedded solutions for vision systems and bus-to-bus interface modules, as well as a variety of modules available from GE (see accompanying table).
Various Degrees of Redundancy
Combining the Series 90-70 with the advanced functionality of Genius* I/O, GE Genius Modular Redundancy (GMR) systems and Hot Standby systems can provide as much or as little redundancy as you need for your critical applications.
• The versatility and strength of the GMR system make it an ideal choice for rigorous emergency shutdown and human life protection systems. It has a class 6 TÜV rating.
• Based on three isolated PLCs and extensive diagnostics, the GMR triple modular redundancy system uses two-out-of-three voting to provide high reliability and errorfree operation.
• CPU Genius Redundancy (CGR) systems achieve enhanced hot standby CPU redundancy by connecting two power supplies and two CGR CPUs to one or more Genius I/O networks.
