IC754VGI06STD Product datasheet
|
Model number: |
IC754VGI06STD |
|
Module Type： |
Quickpanel View |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Fanuc |
|
Lead time： |
In Stock |
|
Weight: |
0.54 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
18.8x16.4x4cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC754VGI06STD Functional Description

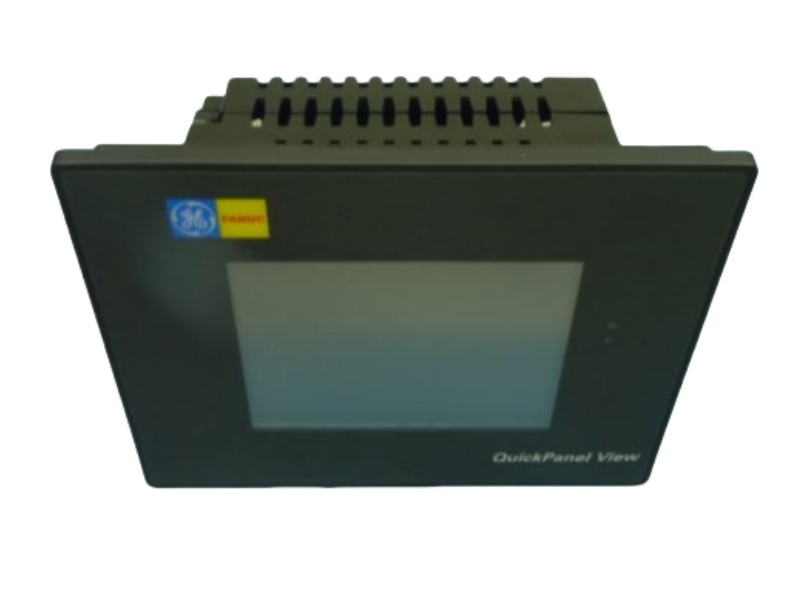

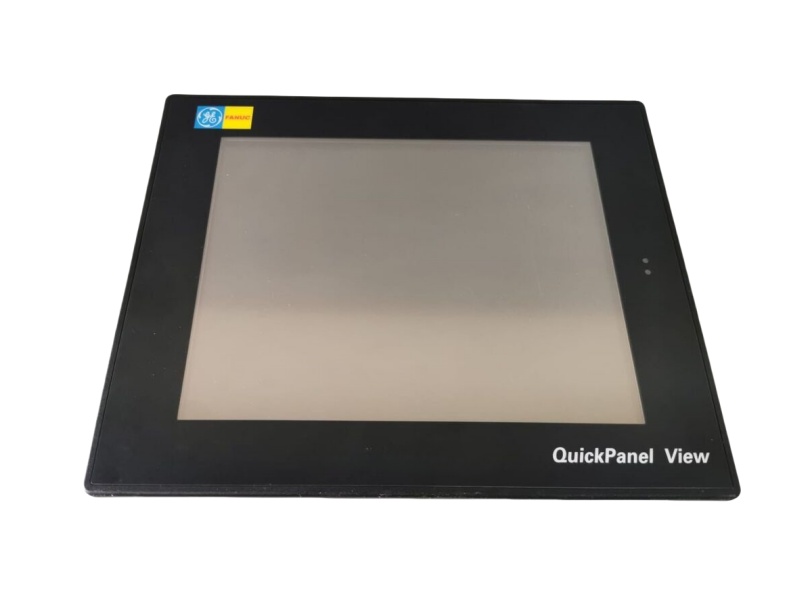

The IC754VGI06STD by General Electric is a versatile and robust Quick Panel Full Color Terminal designed to deliver exceptional performance in both industrial and home automation environments. This advanced HMI device integrates machine control and visualization into a single compact unit, powered by the Microsoft Windows CE.NET Operating System. Preloaded with Proficy Machine Edition software, the IC754VGI06STD-GF Operator Interface Module offers a seamless programming environment for HMI, motion control, and machine development. Its 6-inch Passive Matrix Super-Twisted Nematic Color Display with 320 x 240-pixel resolution ensures clear visuals, supported by a durable CCFL backlight rated for 40,000 hours of half-life.

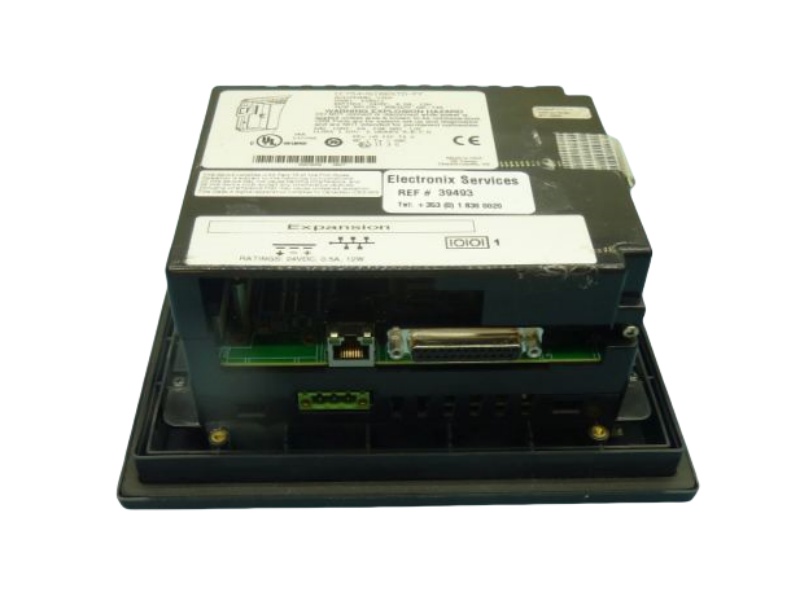

The IC754VGI06STD Quickpanel View features an analog resistive touchscreen with 320 x 240 cells resolution, enabling precise input control. Built with a Valor 3706 front panel bezel and LED status indicators, it is designed for rugged environments. Powered by a 300 MHz Intel XScale PXA255 processor, it includes 32MB SDRAM and flash memory, expandable up to 64MB via a Type 2 slot. Connectivity options include an RS-232 Serial port and an RJ45 Ethernet port, supporting speeds up to 100 Mbps.
With a DC power supply range of 18-30V, the General Electric IC754VGI06STD On Sale Large Stock Plc Controller operates efficiently, consuming only 12W of power. It withstands harsh conditions, operating in temperatures from 0 to 60°C and resisting 15G shocks and 1G vibrations. Encased in a NEMA 4, 4X, and 12-rated enclosure, it is CE, c-UL, and ATEX certified, ensuring reliability in demanding applications. Weighing just 1.16Kg, the IC754VGI06STD is a compact yet powerful solution for industrial automation needs.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
