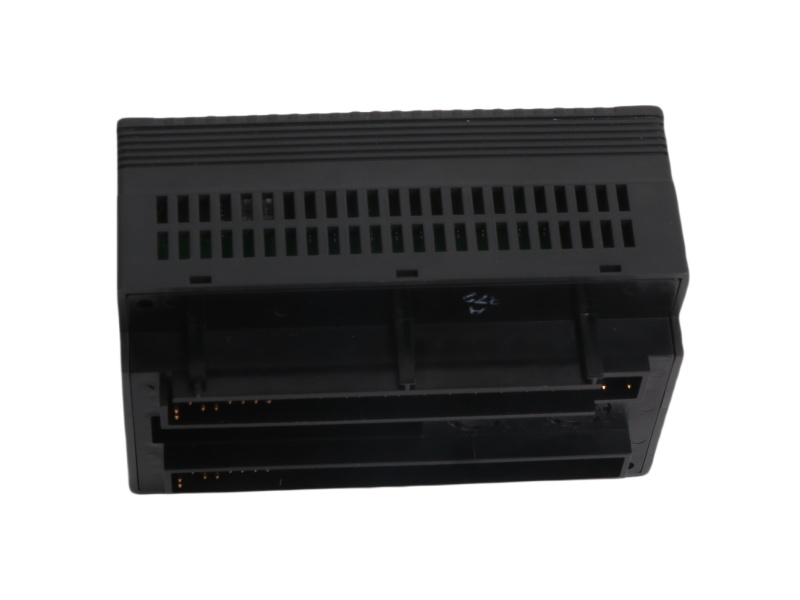

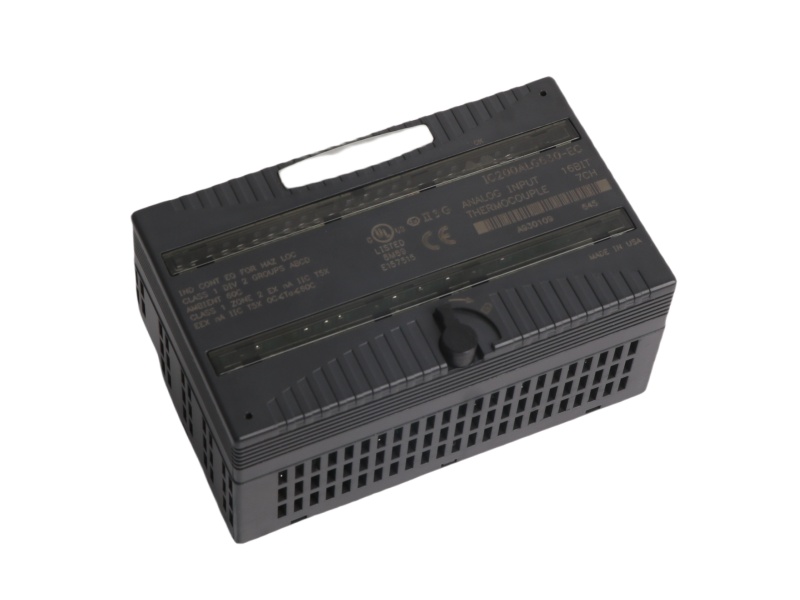

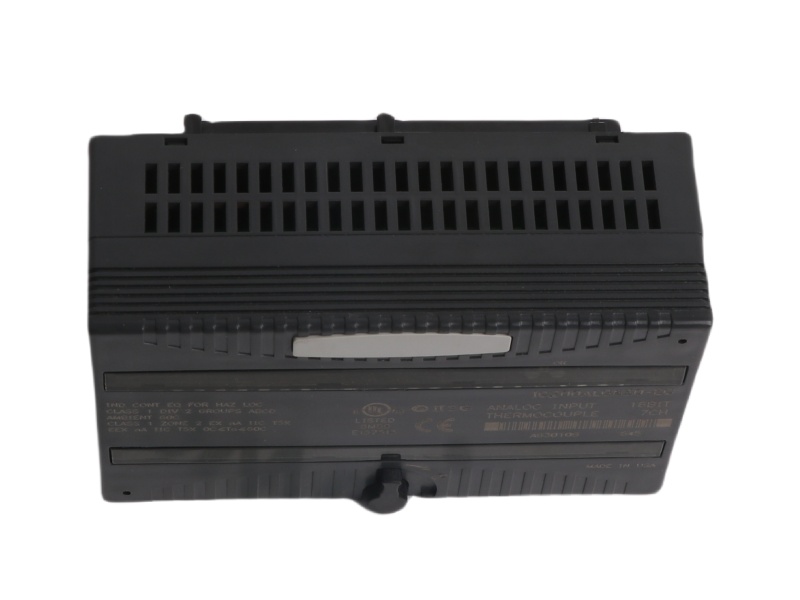

GE Fanuc IC200ALG630 VersaMax Analog Input Module

GE Fanuc IC200ALG630
GE Fanuc IC200ALG630
GE Fanuc IC200ALG630

IC200ALG630 Product datasheet

Model number:

IC200ALG630



Module Type:

VersaMax IO is versatile Modular

Manufacture:

GE



Condition:

Brand New

Range of Product:

VersaMax



Lead time:

In Stock

Weight:

0.3 kg



HS CODE:

8537101190

Dimension:

15.5x15x8.3cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

Active



Communication Service:

Ethernet router



IC200ALG630 Functional Description


The IC200ALG630 is a component of the VersaMax I/O platform, originally manufactured by GE Intelligent Platforms (GE IP) and now produced by Emerson Automation. This module is specifically designed for temperature measurement and the integration of non-standard millivolt signals, making it widely used in industrial automation applications.



The IC200ALG630 VersaMax Analog Input Module features seven analog input channels that support direct connection to J, K, T, S, and R-type thermocouples. It also accommodates various millivolt signals ranging from +/-19.5mV to +/-625mV. With a 16-bit resolution Analog-to-Digital Converter (ADC) on each channel, it ensures high-precision data acquisition. The scanning time is 60 milliseconds per point at 60Hz and 70 milliseconds per point at 50Hz, with a voltage measurement accuracy of +/-0.2% and a temperature measurement accuracy of +/-0.15%.



Additionally, the IC200ALG630 Profibus Master Module offers advanced diagnostic features, including open thermocouple detection, over/under-range alarms, and thermistor fault detection. The module has an LED status indicator that provides operational feedback—green indicates normal operation, while amber signals a fault. It consumes 125mA of backplane current and provides 250VAC continuous isolation with 1500VAC transient isolation.



With a compact design, the IC200ALG630 16-Bit Analog Input Thermocouple Module helps save panel space and enhances signal stability through shielded twisted-pair connections. Its reliability and precise measurement capabilities make it an ideal choice for industrial temperature monitoring applications.

If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




GE

IC693ACC310

GE

IS220PPDAH1B

GE

IS220PAICH2A

GE

IC693ACC302

GE

IS220PPDAH1A

GE

IS220PAICH1A

GE

IC676PBO082

GE

IS220PGENH1AE

GE

IS230JPDMG1B

GE

IC693ALG442

GE

IS220PDOAH1B

GE

IS220YDOAS1AJ

GE

IC693ALG391

GE

IS220PDOAH1A

GE

IS220YDOAS1A

GE

IC693ALG222

GE

IS220PDOAH1A

GE

IS220YDIAS1AK

GE

IC676PBI008

GE

IS220PDIAH1AD

GE

IS220YDIAS1A

GE

IC670PBI001

GE

IS220PDIAH1A

GE

IS220YAICS1A

GE

IC670MDL740

GE

IS220PAOCH1BE

GE

IS220UCSAH1A

GE

IC670GBI102

GE

IS220PAOCH1A

GE

IS220PVIBH1A





VersaMax Micro, Micro PLUS and Nano PLC Models


Introduction

Versions of these compact, powerful controllers are available for AC and DC power, and with several different combinations of discrete and analog input and output points. This chapter compares the features of the many VersaMax Nano, Micro and Micro PLUS PLC models that are available. Micro PLUS 20/40/64 CPUs have enhanced memory compared to earlier versions of these CPUs. Firmware versions 4.00 and later cannot be used with the earlier hardware versions.



The VersaMax® PLC family of products includes a broad range of small-size programmable logic controllers (PLCs) with big-PLC features. The VersaMax family includes Nano PLCs (10 points), Micro PLCs (up to 176 I/O points), and Micro PLUS PLCs (up to 320 I/O points) using optional Expansion Units. These small PLCs are the perfect solution for applications such as packaging machines, dispensing machines, and relay replacement.

Changes to the program that do not modify the size of the program are considered wordfor-word changes. Examples include changing the type of contact or coil or changing a reference address used for an existing function block. Changing an operand is usually a word-for-word change. A word-for-word change can be made and downloaded to the PLC while online in programmer mode without having to download the entire block of logic.
