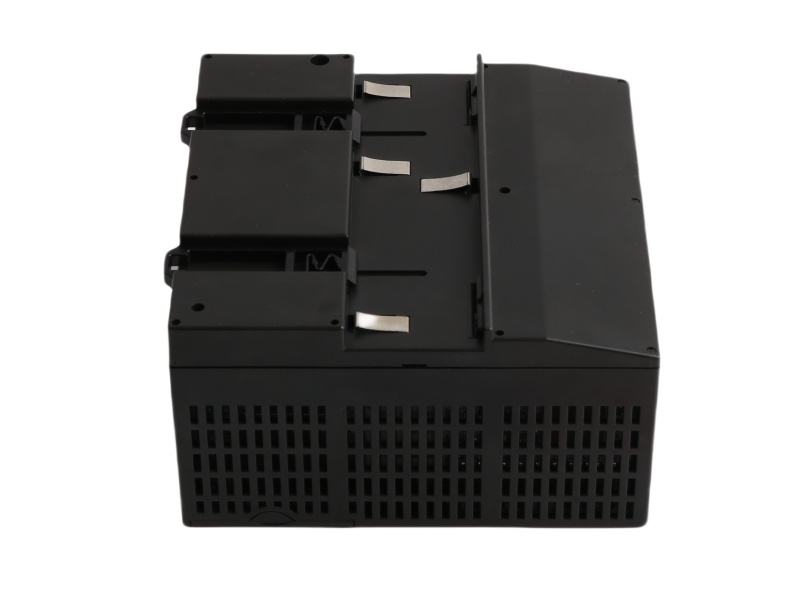

IC200PNS001 Functional Description

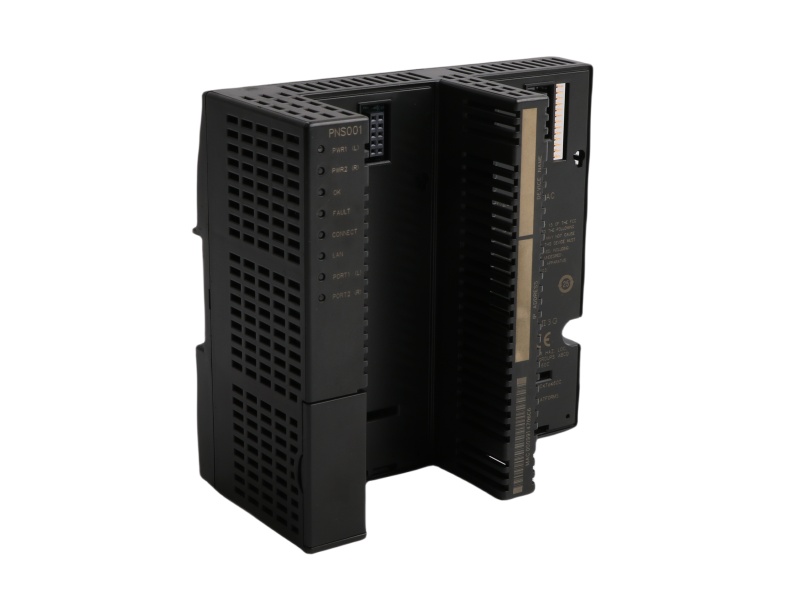

The IC200PNS001 is a high-performance Profinet network interface unit from the VersaMax product family. It is designed to facilitate distributed I/O architecture using the Profinet industrial protocol, specifically supporting Profinet Slave Version 2.2 Class A I/O Device. The IC200PNS001 is compatible not only with VersaMax I/O modules but also with PACSystems RX3i and RX7i controllers, making it a versatile solution for industrial automation.

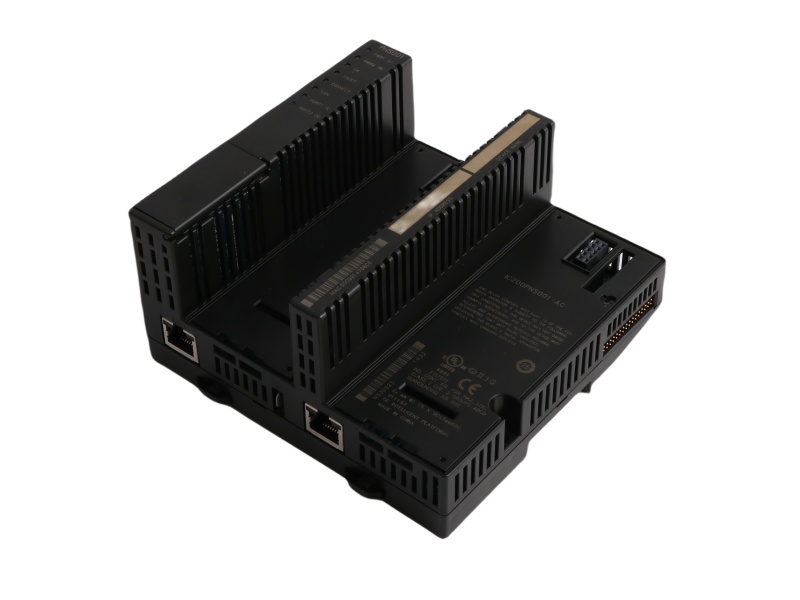

Equipped with two RJ45 ports, the IC200PNS001 VersaMax PROFINET Scanner Modules functions as an embedded switch, requiring only a single IP address. It supports multiple Ethernet topologies, including linear, star, and ring configurations, ensuring flexibility in network design. The 10/100 Mbps transmission rate enables seamless communication, handling up to 2880 bytes of both discrete and analog I/O data—divided equally into 1440 bytes of input and 1440 bytes of output. Additionally, the module features 32 diagnostic input status bits and 32 output control bits, enhancing its monitoring capabilities.

The General Electric IC200PNS001 Remote I/O Module supports up to eight VersaMax I/O modules and carriers per instance, offering configurable data update rates from 1ms to 512ms. It operates with a 5 VDC backplane current consumption of 3 Watts and has compact dimensions of 134mm x 132mm. Using 10/100BASE-T transmission media, it allows a maximum cable distance of 100 meters per segment, extendable via Ethernet switches or fiber optic media converters.

For seamless integration, the GE Fanuc VersaMax IC200PNS001 PROFINET Scanner (PNS) module requires an RX3i PLC CPU with firmware version 7.0 or later and Proficy Machine Edition software version 7.0 or newer. It plays a crucial role in coordinating VersaMax remote nodes within the PROFINET I/O network, efficiently managing input retrieval, output delivery, and diagnostic reporting. Key features include hot-swappable power supply support, Classless InterDomain Routing (CIDR) with subnetting, and firmware updates via USB (USB is intended for upgrades only, not for permanent connections).

The IC200PNS001 New GE Fanuc Emerson enables remote node connections to oversee I/O status in case of communication failures. It handles input and output scans, module configurations, and PROFINET communication between I/O controllers and modules. It also generates fault reports, alarms, and diagnostics, ensuring smooth operation. The module’s main remote I/O exchanges data with PROFINET controllers, maintaining real-time updates across the network. Designed for industrial environments, it operates in temperatures ranging from 0 to 60°C, even without a cooling fan.

By offering advanced networking capabilities, robust diagnostics, and seamless PROFINET integration, the IC200PNS001 ensures reliable performance in modern industrial automation applications.
