IC200PWR102 Product datasheet
|
Model number: |
IC200PWR102 |
|
Module Type： |
Power Supply |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
VersaMax |
|
Lead time： |
In Stock |
|
Weight: |
0.06 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
11x3.5x3cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC200PWR102 Functional Description

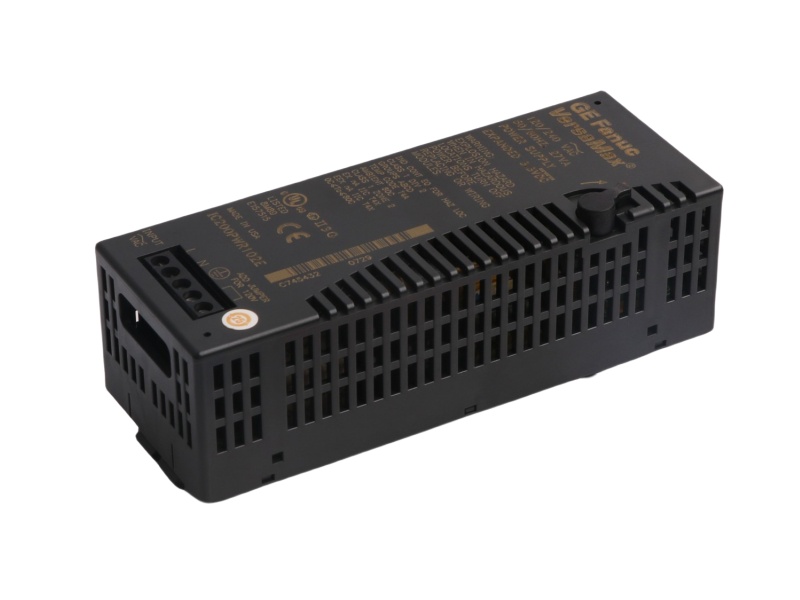

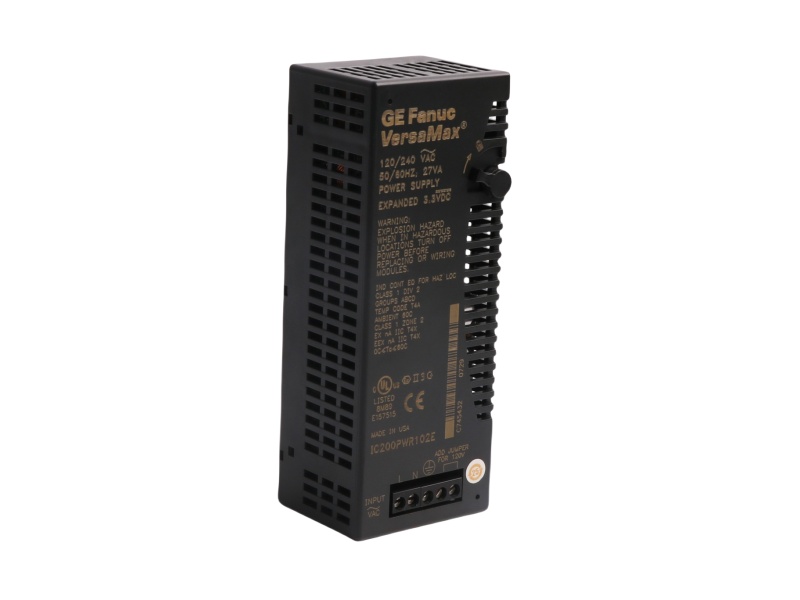

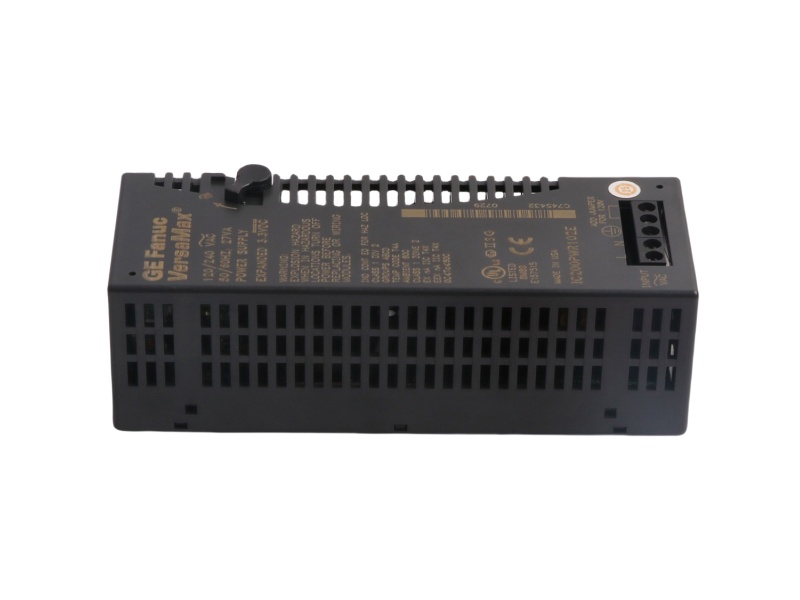

The GE Fanuc IC200PWR102 Expanded 3.3V Power Supply from the VersaMax product family, currently manufactured by Emerson Automation (formerly GE Intelligent Platforms). This module supplies power to the VersaMax backplane, which distributes power to installed CPUs, NIUs, I/O modules, and intelligent modules.
The GE Fanuc IC200PWR102E VersaMax Power supply operates with an AC input voltage of 85-132V (120V nominal) or 176-264V (240V nominal) at 47-63 Hz, consuming 27VA of power. It provides 5V DC and 3.3V DC outputs, delivering up to 1.5A total, with a 1.0A limit on the 3.3V output. The module features short-circuit and overload protection, ensuring safe and reliable operation.
A jumper setting determines the input voltage: with a jumper installed, the module operates at 120V AC nominal; without it, it supports 240V AC nominal. However, using a jumper at 240V AC is not recommended, as it may damage the IC200PWR102B New GE Fanuc Emerson or pose safety risks.
This power supply module can serve as the primary power source or as a supplemental supply when installed on a Power Supply Booster Carrier. With a 20ms holdup time, the IC200PWR102B New GE Fanuc Emerson ensures stable power delivery, making it a reliable choice for VersaMax PLC systems.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693ACC310 |
GE |
IS220PPDAH1B |
GE |
IS220PAICH2A |
|
GE |
IC693ACC302 |
GE |
IS220PPDAH1A |
GE |
IS220PAICH1A |
|
GE |
IC676PBO082 |
GE |
IS220PGENH1AE |
GE |
IS230JPDMG1B |
|
GE |
IC693ALG442 |
GE |
IS220PDOAH1B |
GE |
IS220YDOAS1AJ |
|
GE |
IC693ALG391 |
GE |
IS220PDOAH1A |
GE |
IS220YDOAS1A |
|
GE |
IC693ALG222 |
GE |
IS220PDOAH1A |
GE |
IS220YDIAS1AK |
|
GE |
IC676PBI008 |
GE |
IS220PDIAH1AD |
GE |
IS220YDIAS1A |
|
GE |
IC670PBI001 |
GE |
IS220PDIAH1A |
GE |
IS220YAICS1A |
|
GE |
IC670MDL740 |
GE |
IS220PAOCH1BE |
GE |
IS220UCSAH1A |
|
GE |
IC670GBI102 |
GE |
IS220PAOCH1A |
GE |
IS220PVIBH1A |
VersaMax Micro, Micro PLUS and Nano PLC Models
Introduction
Versions of these compact, powerful controllers are available for AC and DC power, and with several different combinations of discrete and analog input and output points. This chapter compares the features of the many VersaMax Nano, Micro and Micro PLUS PLC models that are available. Micro PLUS 20/40/64 CPUs have enhanced memory compared to earlier versions of these CPUs. Firmware versions 4.00 and later cannot be used with the earlier hardware versions.

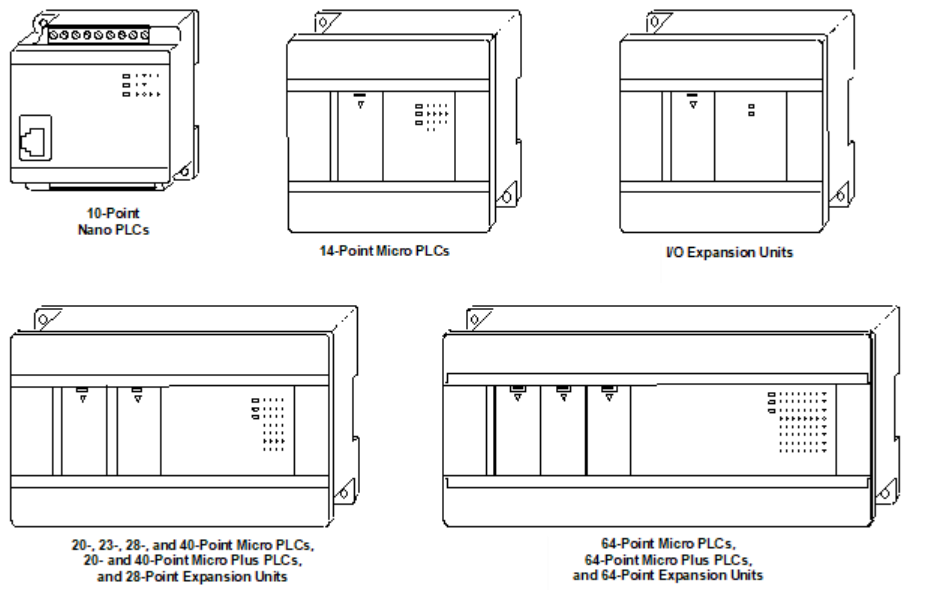

The VersaMax® PLC family of products includes a broad range of small-size programmable logic controllers (PLCs) with big-PLC features. The VersaMax family includes Nano PLCs (10 points), Micro PLCs (up to 176 I/O points), and Micro PLUS PLCs (up to 320 I/O points) using optional Expansion Units. These small PLCs are the perfect solution for applications such as packaging machines, dispensing machines, and relay replacement.
Changes to the program that do not modify the size of the program are considered wordfor-word changes. Examples include changing the type of contact or coil or changing a reference address used for an existing function block. Changing an operand is usually a word-for-word change. A word-for-word change can be made and downloaded to the PLC while online in programmer mode without having to download the entire block of logic.
