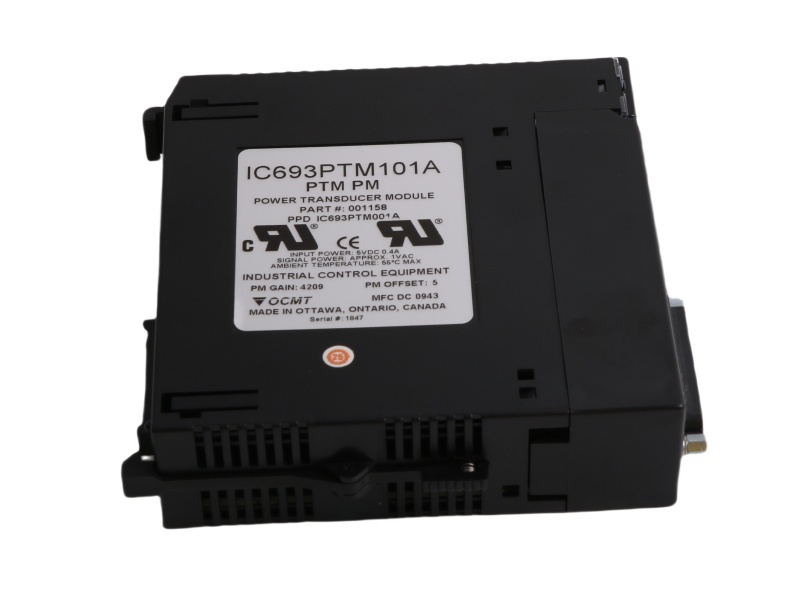

IC693PTM101 Product datasheet
Model number: |
IC693PTM101 |
|
Module Type: |
Power Transducer Module |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
PACSystems™ RX3i |
|
Lead time: |
In Stock |
Weight: |
0.36 kg |
|
HS CODE: |
8537101190 |
Dimension: |
3.5x13.2x13.5cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
PLC |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC693PTM101 Functional Description
The IC693PTM101 is an advanced Power Transducer Module that forms part of the Series 90-30 platform, originally developed by GE Fanuc and now under Emerson Automation. This versatile module is designed to analyze electrical consumption and monitor voltage between electrical generators and the distribution grid. The IC693PTM101 advanced Power Transducer Module offers several operational modes, including Single, 3-phase, and Synchro monitor modes, making it highly adaptable to various power systems. It is installed on a Series 90-30 baseplate and connects to current and potential transformers to gather data, enabling precise measurements.
The IC693PTM101 advanced Power Transducer Module excels in measuring Root Mean Square (RMS) values of voltage and current, calculating key metrics such as power, power factor, frequency, energy, and total demand within a 15-minute period. It operates effectively in both Wye and Delta type 3-phase systems, as well as single-phase configurations. While this module can function as a power meter, its integration with a PLC system allows for simplified data processing, reporting, and fault monitoring. Additionally, it supports generator synchronization, demand penalty cost reduction, and load shedding operations.
With a broad range of features, the IC693PTM101 advanced Power Transducer Module is compatible with all Series 90-30 PLC CPUs and can be mounted on any baseplate, whether it is a CPU, expansion, or remote baseplate. This flexibility ensures easier installation and minimizes the need for long cable runs. It is capable of handling data processing tasks efficiently, with low latency at frequencies between 50 and 60 Hertz, delivering accurate results within milliseconds. IC693PTM101 advanced Power Transducer Module also includes a predictive diagnostics feature, which provides valuable troubleshooting insights and performance reports, ensuring system reliability and optimal operation.
In summary, the IC693PTM101 advanced Power Transducer Module is a powerful, multifunctional transducer module, ideal for industrial automation and power system monitoring, offering exceptional flexibility, performance, and integration with PLCs.
