IC693PWR321 Product datasheet
Model number: |
IC693PWR321 |
|
Module Type: |
Power Supply Modules |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
PACSystems™ RX3i |
|
Lead time: |
In Stock |
Weight: |
0.36 kg |
|
HS CODE: |
8537101190 |
Dimension: |
3.5x13.2x13.5cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
PLC |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC693PWR321 Functional Description

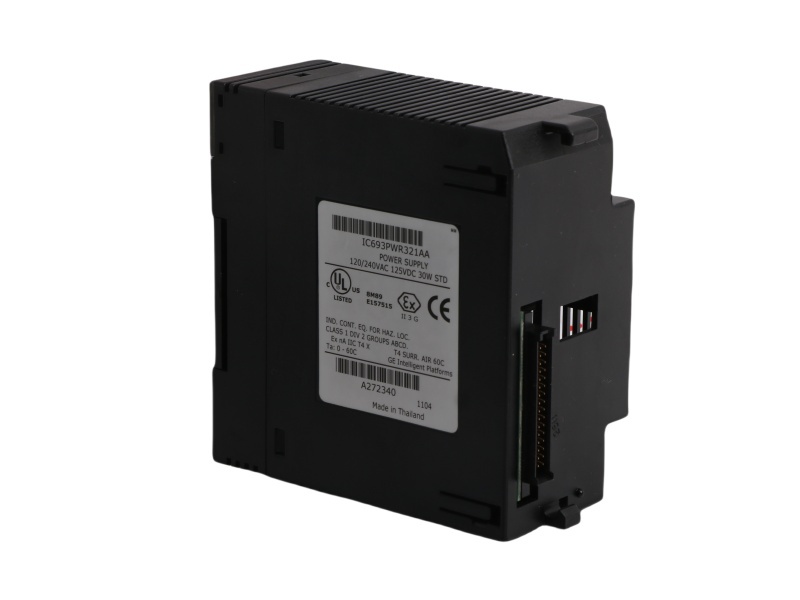

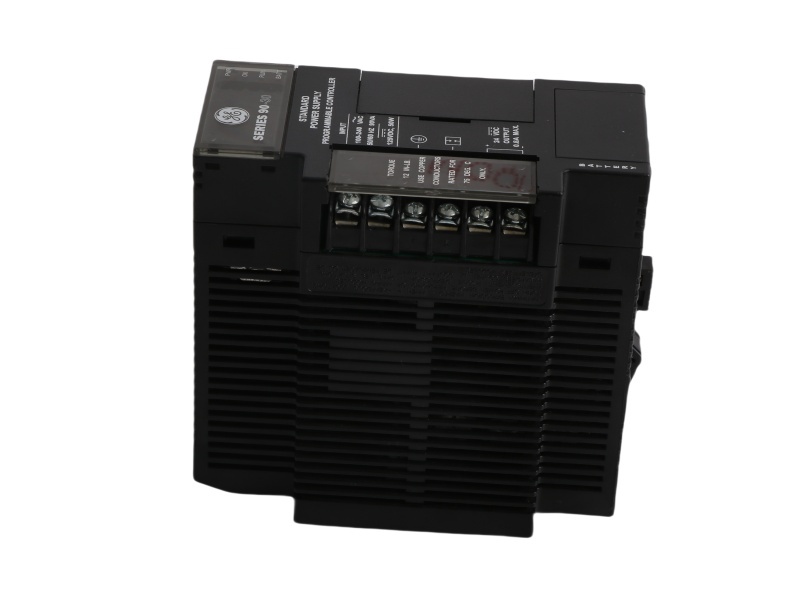

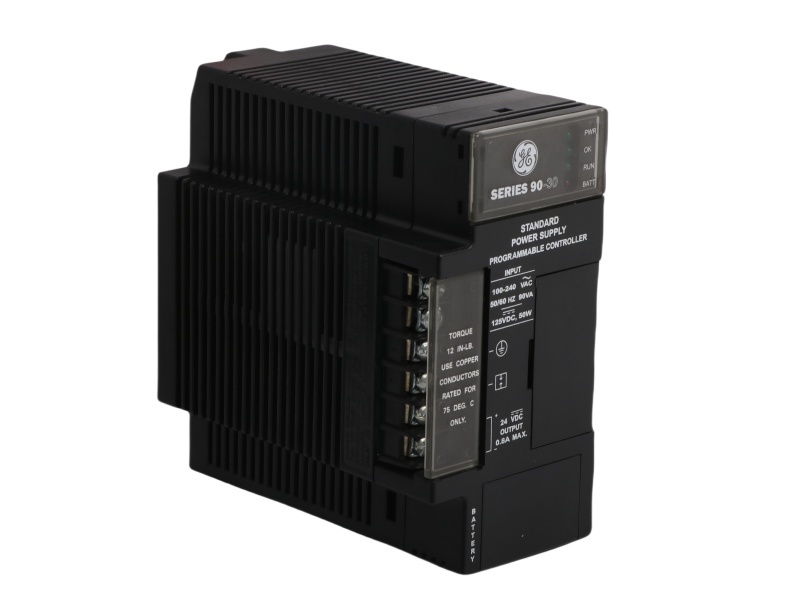

The GE Fanuc IC693PWR321 is a power supply module from the 90-30 Series, specifically designed to support the processing capabilities of the Fanuc 90-30 PLCs. Positioned in the leftmost slot of the baseplate, this power supply module has a rating of 30 Watts and can operate with both AC and DC power sources. The input voltage range for the IC693PWR321 power supply module is between 85-264V AC or 100-300V DC. It provides three key output voltages: 5V DC, 24V DC, and an isolated 24V DC. The 5V and 24V DC outputs are used for powering internal circuits, while the isolated 24V DC supply serves external modules. The IC693PWR321 module features an inrush current of 4A peak, with a duration of up to 250 milliseconds.
IC693PWR321 power supply module is compatible with all CPU models within the Fanuc 90-30 Series and meets key safety certifications, including cULus and CE. It is rated for use in Class 1, Division 2 environments and includes several built-in protective features. These include a power supply limiting function to protect against direct short circuits and enhanced diagnostics that provide real-time event tracking for operators. The IC693PWR321 power supply module is also equipped with an internal fuse and a smart switch fusing for added protection.
For communication, the IC693PWR321 power supply module includes an RS-485 serial port, enabling connections to peripheral devices and CPUs. The AC input requirement for the IC693PWR321 power supply module is 90 VA, while the DC input requires 50W. Its output includes a maximum of 15 Watts for 5V and 24V relay operations and up to 20 Watts for isolated 24V DC. With its robust design, the IC693PWR321 power supply module offers reliable performance, versatile input/output options, and enhanced safety features, making it a key component in the Fanuc 90-30 PLC system.
