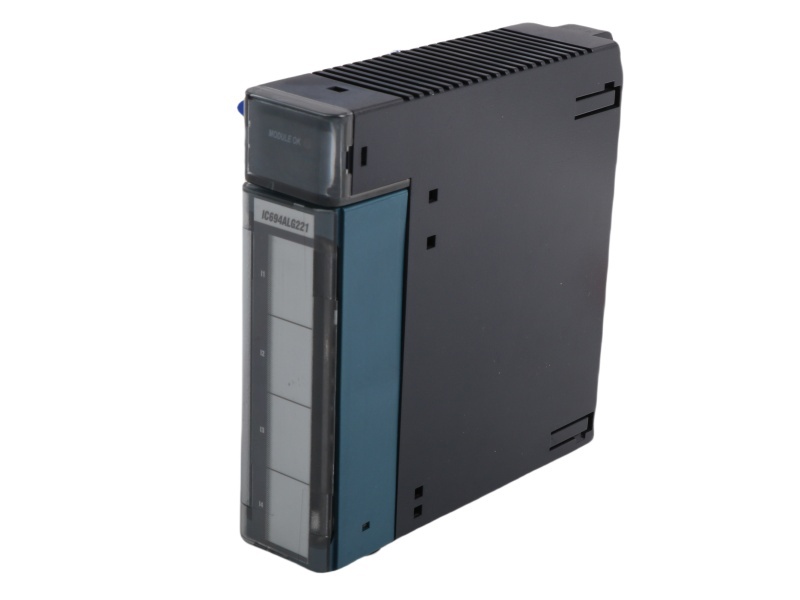

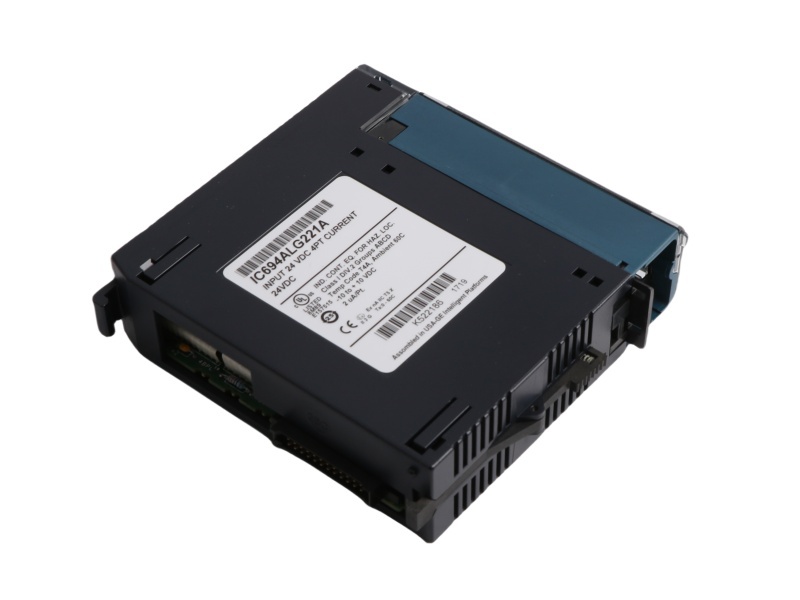

GE Fanuc IC694ALG221 4–Channel Analog Current Input module

Inquiry now

IC694ALG221 Product datasheet

Model number:	IC694ALG221	Module Type：	Analog Current Input module
Manufacture:	GE	Condition：	Brand New
Range of Product:	PACSystems™ RX3i	Lead time：	In Stock
Weight:	0.36 kg	HS CODE：	8537101190
Dimension:	3.5x13.2x13.5cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC694ALG221 Functional Description

The IC694ALG221 is a versatile analog input module from the PACSystem RX3i series by GE Fanuc, designed to integrate with programmable automation controllers (PACs). IC694ALG221 versatile analog input module features four analog input channels that support current signals in the 0-20 mA and 4-20 mA ranges, making it ideal for interfacing with a variety of analog instruments such as transmitters, signal isolators, and converters. This module plays a critical role in systems requiring precise analog measurements and closed-loop control.

The IC694ALG221 versatile analog input module incorporates a built-in analog-to-digital converter (ADC) that allows for the seamless conversion of analog data into digital signals, ensuring compatibility with the host controllers for processing. With a resolution of 4 µA for 4-20 mA inputs and 5 µA for 0-20 mA inputs, it provides high accuracy, offering ±0.1% full-scale accuracy plus an additional ±0.1% of reading. The module also boasts a fast update rate of 2 ms per channel, ideal for dynamic systems. Each of its four channels is factory-calibrated to ensure reliable performance, and the module supports a high common-mode voltage of up to 200 V, with a linearity of less than 1 Least Significant Bit (LSB).

Designed for ease of use, the IC694ALG221 versatile analog input module is hot-swappable, making it convenient for maintenance and installation in live systems. However, users are warned that improper handling during hot-swapping may lead to component damage or injury. It is compatible with all GE RX3i PACSystem CPUs and draws power from the backplane, consuming 100 mA from a 24 VDC isolated supply and 25 mA from the 5 VDC backplane bus. With an input filter response of 325 Hz and 250 Ohm input impedance, IC694ALG221 versatile analog input module is well-suited for high-precision industrial applications.

The IC694ALG221 versatile analog input module also includes a green Module OK LED, which indicates when the module is properly powered and functioning.
