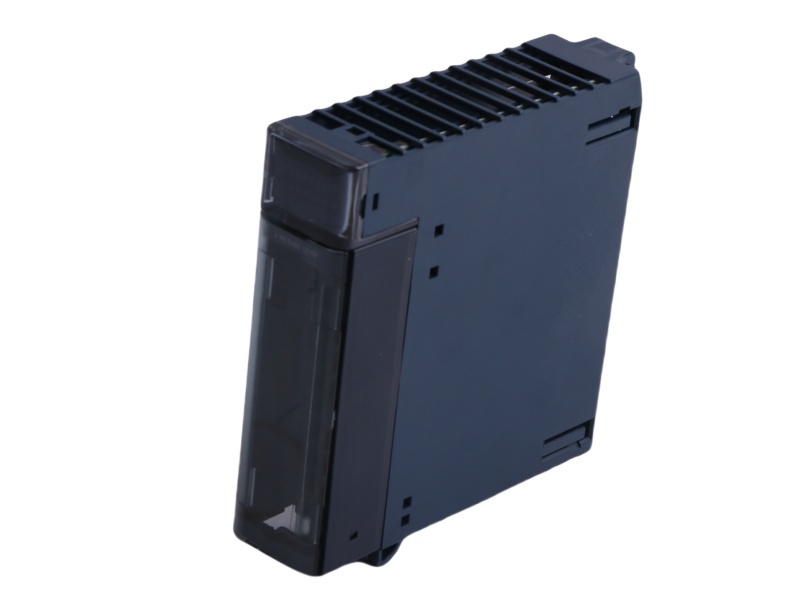

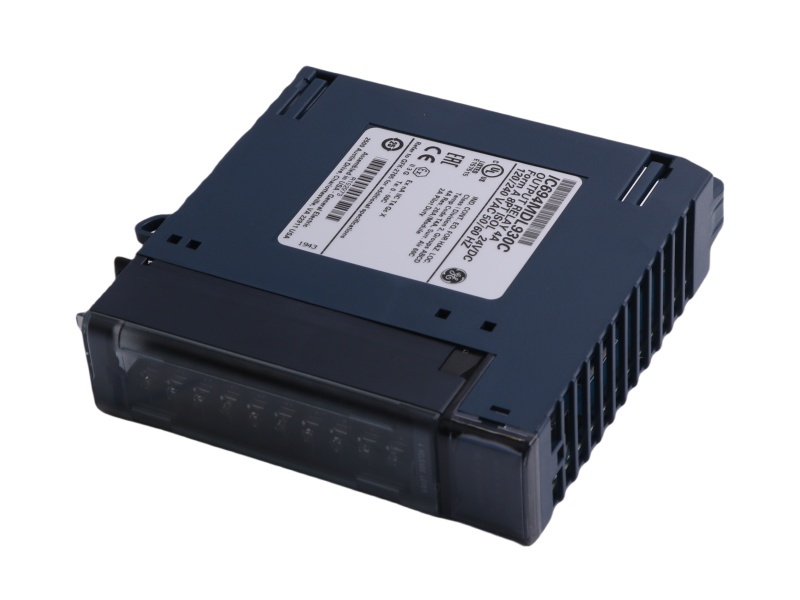

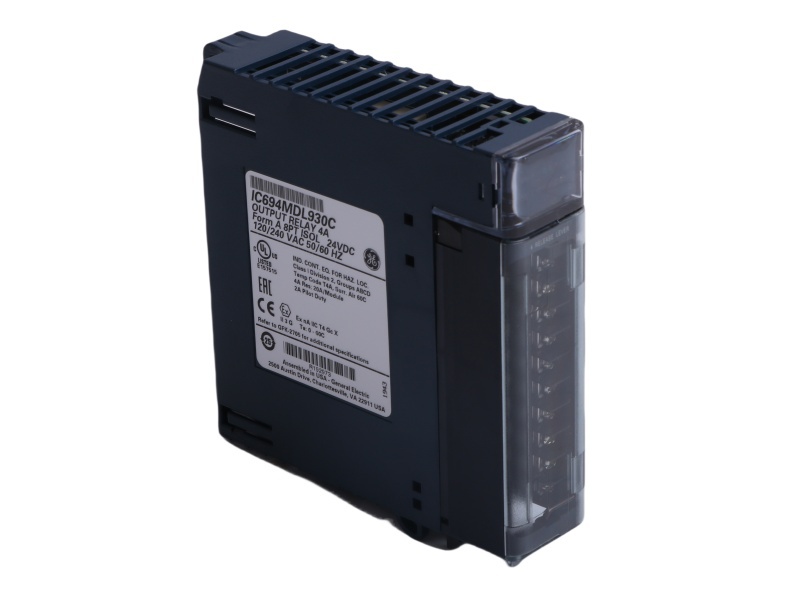

GE Fanuc IC694MDL930 Voltage Output Module

Inquiry now

IC694MDL930 Product datasheet

Model number:	IC694MDL930	Module Type：	Voltage Output module
Manufacture:	GE	Condition：	Brand New
Range of Product:	PACSystems™ RX3i	Lead time：	In Stock
Weight:	0.3 kg	HS CODE：	8537101190
Dimension:	3.5x13.2x13.5cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC694MDL930 Functional Description

The IC694MDL930 is an 8-channel relay output module designed for the PACSystems RX3i platform, part of the GE Fanuc RX3i PACSystems discrete I/O PLC family. This module provides an interface between the RX3i PLC and external devices such as motor starters, solenoids, and indicators. The IC694MDL930 features eight individually isolated Normally Open (N.O.) or Form A contact outputs, each with its own separate common terminal. This design allows different voltage types and levels to be connected, including 5-30 VDC (with 24 VDC nominal) and 5-250 VAC (with 120/240 VAC nominal).

Each output channel of the IC694MDL930 8-channel relay output module can handle a current of up to 4 Amps when controlling resistive loads, or 2 Amps for pilot duty devices. The module's total maximum load current is 30 Amps for UL installations, with variations depending on the ambient temperature. The minimum load for each output is 10 mA, making it suitable for a wide range of applications. The module's typical response time for both On and Off switching is 15 ms, ensuring quick and reliable operation.

In terms of installation, the IC694MDL930 8-channel relay output module can be mounted on a Series 90-30 baseplate, and it supports both local and remote I/O configurations with the appropriate communication adapter. IC694MDL930 8-channel relay output module features eight status LED indicators that show the energization state of each output. The module requires an external power supply, with options for 120-240V AC or 24V DC. It is rated for an operating voltage range of 5-30 VDC or 5-250 VAC and supports output isolation ratings of 250 VAC continuous or 1500 VAC for 60 seconds.

Overall, the IC694MDL930 8-channel relay output module is a versatile and reliable relay output module, ideal for controlling high-voltage devices in industrial automation systems.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IC693ACC310	GE	IS220PPDAH1B	GE	IS220PAICH2A
GE	IC693ACC302	GE	IS220PPDAH1A	GE	IS220PAICH1A
GE	IC676PBO082	GE	IS220PGENH1AE	GE	IS230JPDMG1B
GE	IC693ALG442	GE	IS220PDOAH1B	GE	IS220YDOAS1AJ
GE	IC693ALG391	GE	IS220PDOAH1A	GE	IS220YDOAS1A
GE	IC693ALG222	GE	IS220PDOAH1A	GE	IS220YDIAS1AK
GE	IC676PBI008	GE	IS220PDIAH1AD	GE	IS220YDIAS1A
GE	IC670PBI001	GE	IS220PDIAH1A	GE	IS220YAICS1A
GE	IC670MDL740	GE	IS220PAOCH1BE	GE	IS220UCSAH1A
GE	IC670GBI102	GE	IS220PAOCH1A	GE	IS220PVIBH1A

PACSystems™ RX3i

Introduction

The PACSystems RX3i family provides advanced diagnostics and high performance I/O. With a modular design and multiple expansion options, PACSystems RX3i is the perfect I/O solution for your process, hybrid, and discrete applications.PACSystems RX3i is a rack-based system with a wide range of modules covering digital, analog, and numerous other specialty I/O types. These pluggable and hot-swappable modules allow you to customize the right mix of I/O, with a variety of voltage ranges and current capacities supported to meet all your application needs. Regardless of the I/O mix you choose, PACSystems RX3i is built on high speed interfaces to provide rapid and consistent data transfer With the ability to pair I/O, PACSystems RX3i allows you to scale your system with ease. In addition to I/O that you can put on the main rack, you can expand locally or remotely to connect to additional racks of I/O. In fact, PACSystems RX3i can support as few as 8 I/O points and up to 32 thousand I/O points in a single system. With 7 to 16 slot backplanes and 1 slot expansion options, you can create the perfect system to fit your needs.

Eliminate process interruptions with PACSystems RX3i I/O. Beyond just the high performance PACSystems RX3i offers in simplex configurations, high availability configurations are also possible for maximum reliability. Both Ethernet Global Data (EGD) and PROFINET System Redundancy (PNSR) are supported. With gigabit speed and bumpless switchover, choosing RX3i high availability will prevent unexpected failure and costly downtime.
