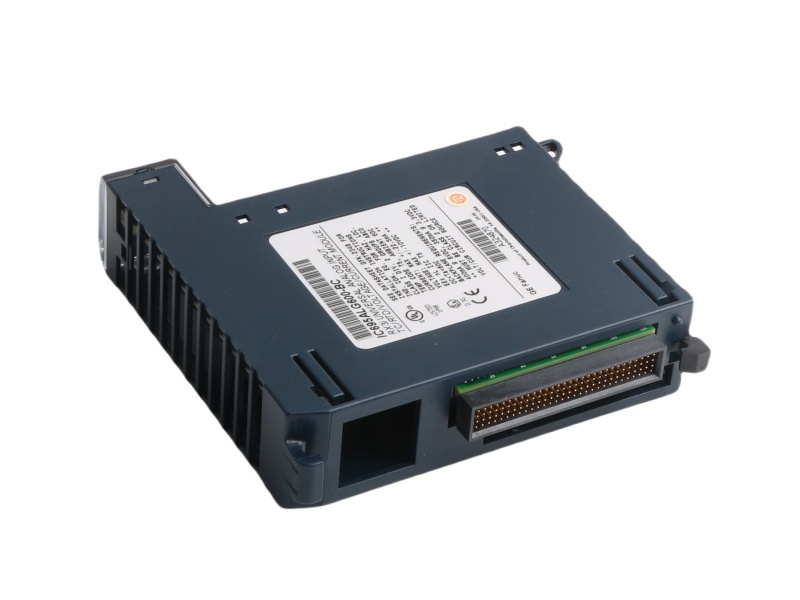

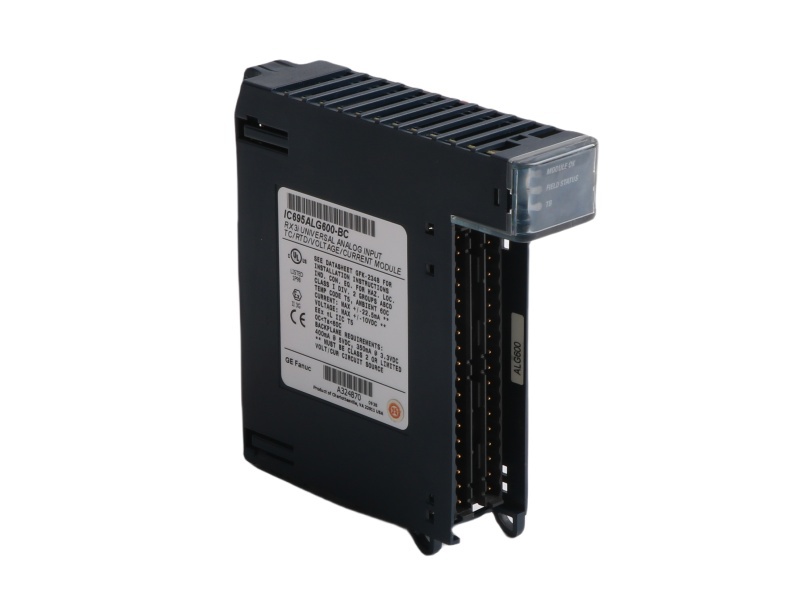

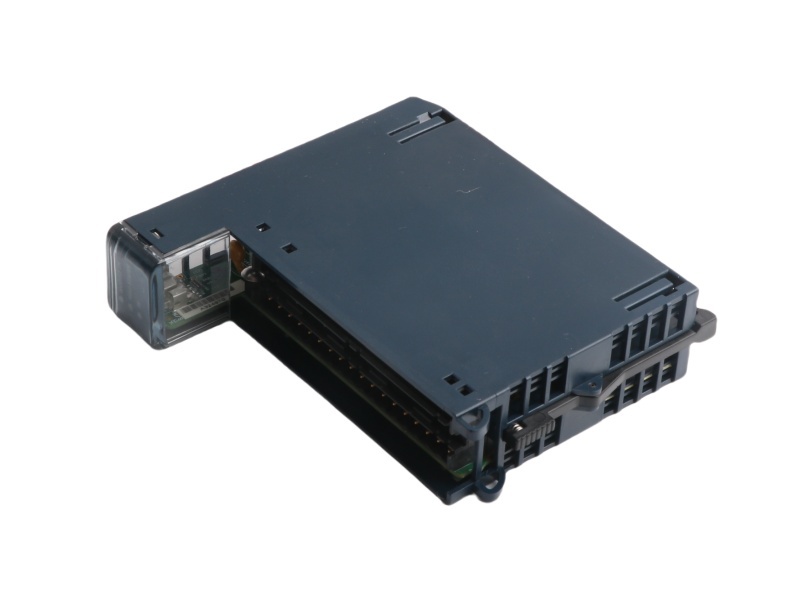

GE Fanuc IC695ALG600 Universal Analog Input Module

Inquiry now

IC695ALG600 Product datasheet

Model number:	IC695ALG600	Module Type：	Analog Input Module
Manufacture:	GE	Condition：	Brand New
Range of Product:	PACSystems™ RX3i	Lead time：	In Stock
Weight:	0.24 kg	HS CODE：	8537101190
Dimension:	3.5x13.5x13.5cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC695ALG600 Functional Description

The IC695ALG600 is a versatile analog input module designed for the PACSystems RX3i Programmable Automation Controller (PAC) platform. Manufactured by Emerson Automation, formerly GE Intelligent Platforms, this module supports a broad range of input signals, including voltage, current, resistance, and temperature sensors like Thermocouples and Resistance Temperature Detectors (RTDs). The IC695ALG600 versatile analog input module comes equipped with two groups of four channels, which can be configured to handle various signal types independently. It supports current signals ranging from 0–20 mA, 4–20 mA, and +/-20 mA, voltage signals from 0–10 V, 1–5 V, and more, as well as resistance measurements and several RTD sensor types.

For precise signal termination, the IC695ALG600 versatile analog input module requires the use of compatible terminal blocks such as the Box-style (IC694TBB032) or Extended Box-style (IC694TBB132). IC695ALG600 versatile analog input module features status LED indicators, including Module Status, Field Status, and Terminal Block LEDs, which help monitor its performance and troubleshoot issues effectively. It is compatible with the Proficy Machine Edition (PME) software version 5.0 SP1A or later, and can be installed into the RX3i universal backplane, requiring firmware version 2.80 or higher.

The IC695ALG600 versatile analog input module also offers flash memory for future firmware updates and operates within a temperature range of 0–60°C, making it suitable for a wide range of industrial environments. With a maximum power dissipation of 5.4 watts, this module ensures efficient operation and reliability, making it an ideal choice for complex control systems requiring flexible and high-performance analog input processing.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IC693ACC310	GE	IS220PPDAH1B	GE	IS220PAICH2A
GE	IC693ACC302	GE	IS220PPDAH1A	GE	IS220PAICH1A
GE	IC676PBO082	GE	IS220PGENH1AE	GE	IS230JPDMG1B
GE	IC693ALG442	GE	IS220PDOAH1B	GE	IS220YDOAS1AJ
GE	IC693ALG391	GE	IS220PDOAH1A	GE	IS220YDOAS1A
GE	IC693ALG222	GE	IS220PDOAH1A	GE	IS220YDIAS1AK
GE	IC676PBI008	GE	IS220PDIAH1AD	GE	IS220YDIAS1A
GE	IC670PBI001	GE	IS220PDIAH1A	GE	IS220YAICS1A
GE	IC670MDL740	GE	IS220PAOCH1BE	GE	IS220UCSAH1A
GE	IC670GBI102	GE	IS220PAOCH1A	GE	IS220PVIBH1A

PACSystems™ RX3i

Introduction

The PACSystems RX3i family provides advanced diagnostics and high performance I/O. With a modular design and multiple expansion options, PACSystems RX3i is the perfect I/O solution for your process, hybrid, and discrete applications.PACSystems RX3i is a rack-based system with a wide range of modules covering digital, analog, and numerous other specialty I/O types. These pluggable and hot-swappable modules allow you to customize the right mix of I/O, with a variety of voltage ranges and current capacities supported to meet all your application needs. Regardless of the I/O mix you choose, PACSystems RX3i is built on high speed interfaces to provide rapid and consistent data transfer With the ability to pair I/O, PACSystems RX3i allows you to scale your system with ease. In addition to I/O that you can put on the main rack, you can expand locally or remotely to connect to additional racks of I/O. In fact, PACSystems RX3i can support as few as 8 I/O points and up to 32 thousand I/O points in a single system. With 7 to 16 slot backplanes and 1 slot expansion options, you can create the perfect system to fit your needs.

Eliminate process interruptions with PACSystems RX3i I/O. Beyond just the high performance PACSystems RX3i offers in simplex configurations, high availability configurations are also possible for maximum reliability. Both Ethernet Global Data (EGD) and PROFINET System Redundancy (PNSR) are supported. With gigabit speed and bumpless switchover, choosing RX3i high availability will prevent unexpected failure and costly downtime.
