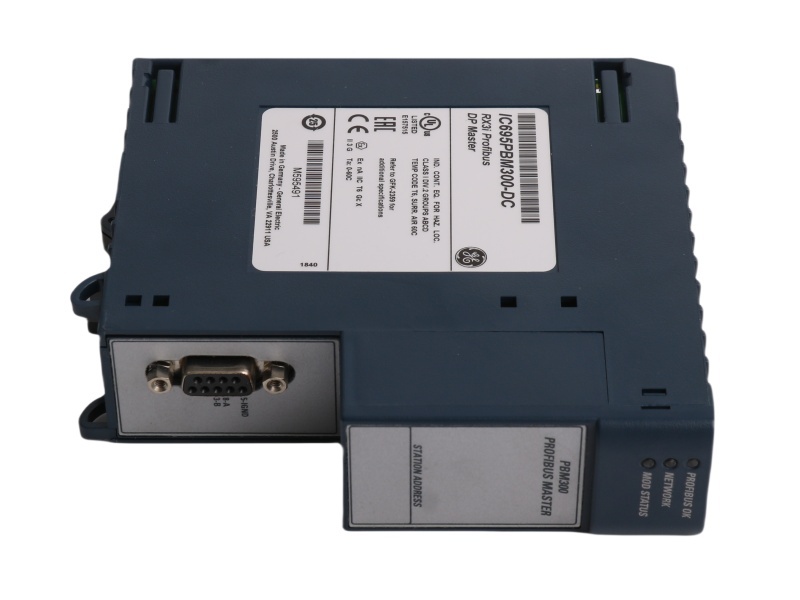

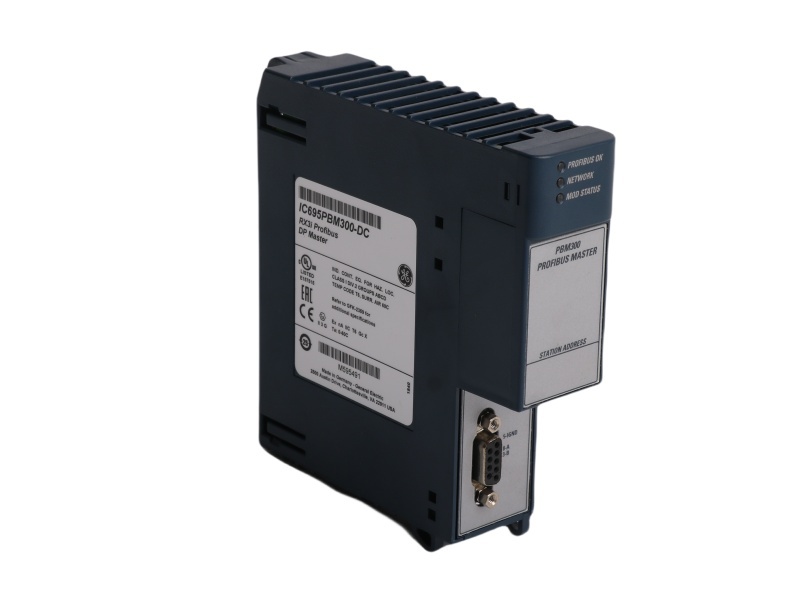

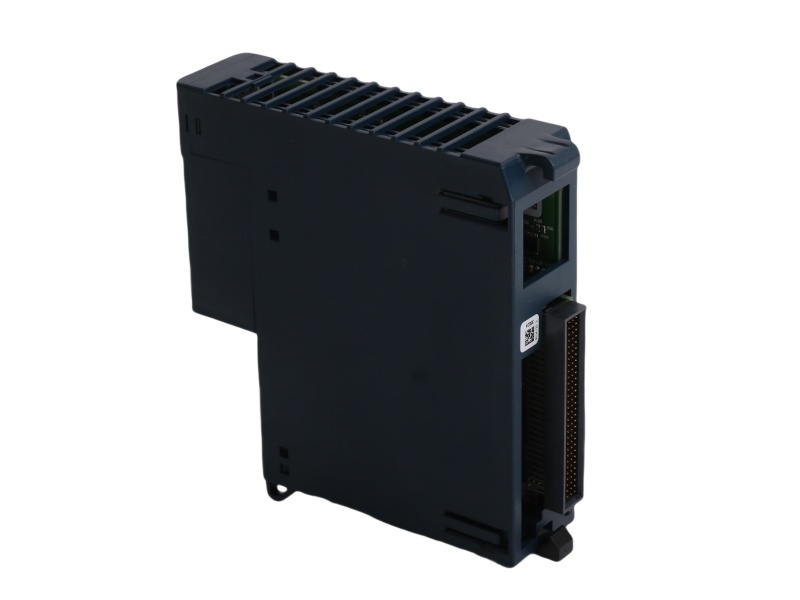

GE Fanuc IC695PBM300 PROFIBUS Master Module

Inquiry now

IC695PBM300 Product datasheet

Model number:	IC695PBM300	Module Type：	PROFIBUS Master Module
Manufacture:	GE	Condition：	Brand New
Range of Product:	PACSystems™ RX3i	Lead time：	In Stock
Weight:	0.16 kg	HS CODE：	8537101190
Dimension:	3.5x13.5x13.6cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC695PBM300 Functional Description

The IC695PBM300 is a Profibus Master module originally manufactured by GE Intelligent Platforms (now part of Emerson Automation), and is designed for integration into the PACSystems RX3i Programmable Automation Controller (PAC) series. This module facilitates data exchange over the Profibus DP network, allowing up to 3,584 bytes of input data and 3,584 bytes of output data. It supports communication with up to 125 DP slaves, with each slave capable of sending 244 bytes of input data and receiving 244 bytes of output data.

The IC695PBM300 Profibus Master module is compatible with a range of standard data rates, including 9.6 kBit/s, 19.2 kBit/s, 93.75 kBit/s, 187.5 kBit/s, 500 kBit/s, 1.5 MBit/s, 3 MBit/s, 6 MBit/s, and 12 MBit/s. It provides essential status information such as the Slave Status Bit Array Table, Network Diagnostic Counters, DP Master Diagnostic Counters, Firmware Module Revision, and Slave Diagnostic Address. The module is designed for installation in an RX3i backplane and draws 440 mA at 3.3 VDC.

Additionally, the IC695PBM300 Profibus Master module supports Synch and Freeze modes, as well as Profibus DP-V1 Read, Write, and Alarm messages. The module’s firmware can be upgraded indirectly via the host controller using the WinLoader software. It is operational within a temperature range of 0 to 60°C and can be stored between -40 and 85°C.

This module also includes PROFIBUS-compliant LED indicators for network and module status, and it uses a 9-pin Sub-D connector for efficient installation of the bus cable. The IC695PBM300 Profibus Master module is fully compatible with RX3i controllers running firmware version 2.9 or later, and requires Machine Edition SP2 software for configuration.
