GE Fanuc IC695PBS301 Profibus Slave Module

Inquiry now

IC695PBS301 Product datasheet

Model number:	IC695PBS301	Module Type：	Profibus Slave Module
Manufacture:	GE	Condition：	Brand New
Range of Product:	PACSystems™ RX3i	Lead time：	In Stock
Weight:	0.16 kg	HS CODE：	8537101190
Dimension:	3.5x13.5x13.6cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC695PBS301 Functional Description

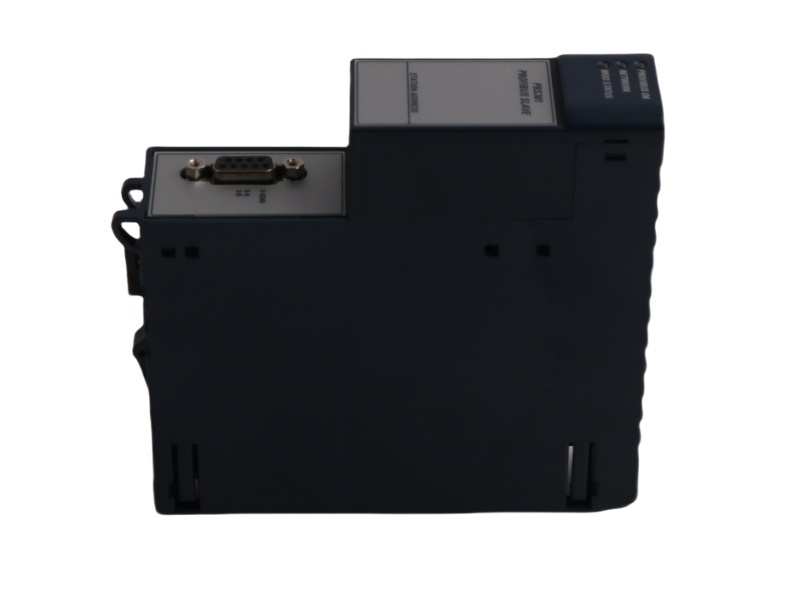

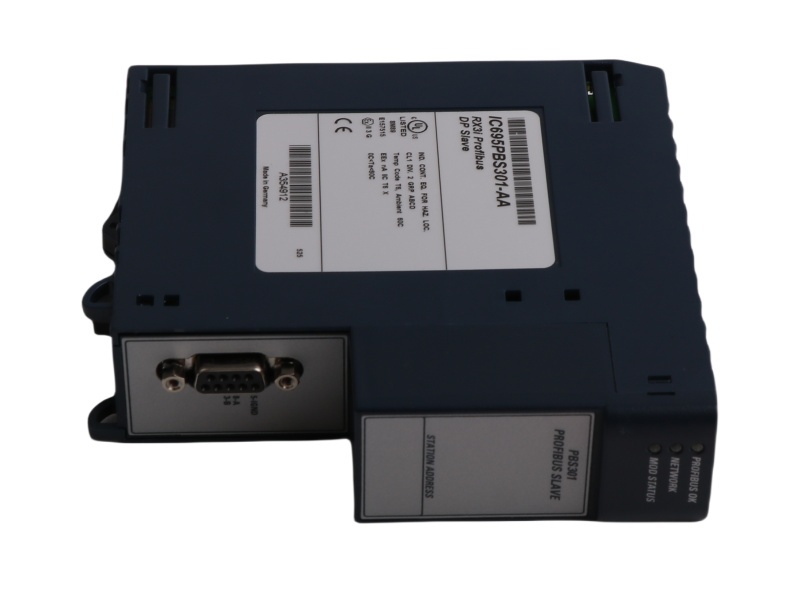

The IC695PBS301 is a PROFIBUS slave module from the RX3i PacSystems product line by GE Fanuc, designed for seamless communication over the PROFIBUS DP network. This module facilitates data exchange between slave devices and master devices without directly accessing the network bus. It can acknowledge incoming messages or send data to the master when requested. Equipped with a 9-pin connector, the IC695PBS301 PROFIBUS slave module features a single slot and consumes 440 milliamps of power at a rated voltage of 3.3V DC. The module supports all standard PROFIBUS data rates and operates within a temperature range of 0 to 60°C, with storage capabilities between -40°C and 85°C.

The IC695PBS301 PROFIBUS slave module provides robust communication functionality, allowing it to read input data of up to 244 bytes and transmit output data of the same size. It also supports PROFIBUS DP-V1 Read-Write and Alarm messages, ensuring reliable and flexible integration into industrial systems. For firmware updates, the module utilizes WinLoader software, which indirectly upgrades the module through the host controller CPU.

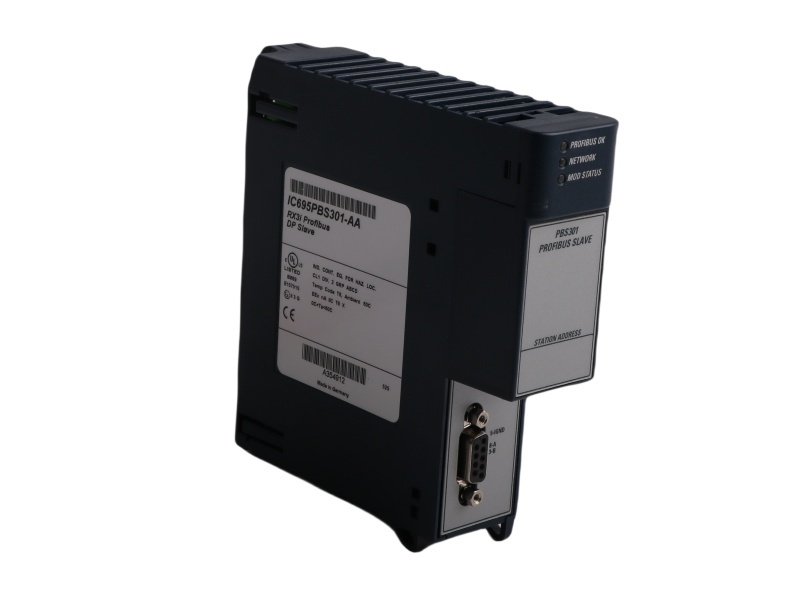

Several LED indicators on the IC695PBS301 PROFIBUS slave module provide critical operational insights. The green "PROFIBUS OK" LED confirms power and a successful backplane reset, while the yellow "network" LED indicates the module’s ability to transmit PROFIBUS telegrams. If there are serious communication issues, the yellow LED turns red. Additionally, the bicolor "MOD Status" LED reflects the module's current operational state.

The IC695PBS301 PROFIBUS slave module is an essential component for efficient and reliable PROFIBUS communication, offering superior flexibility and easy diagnostics for industrial automation systems.
