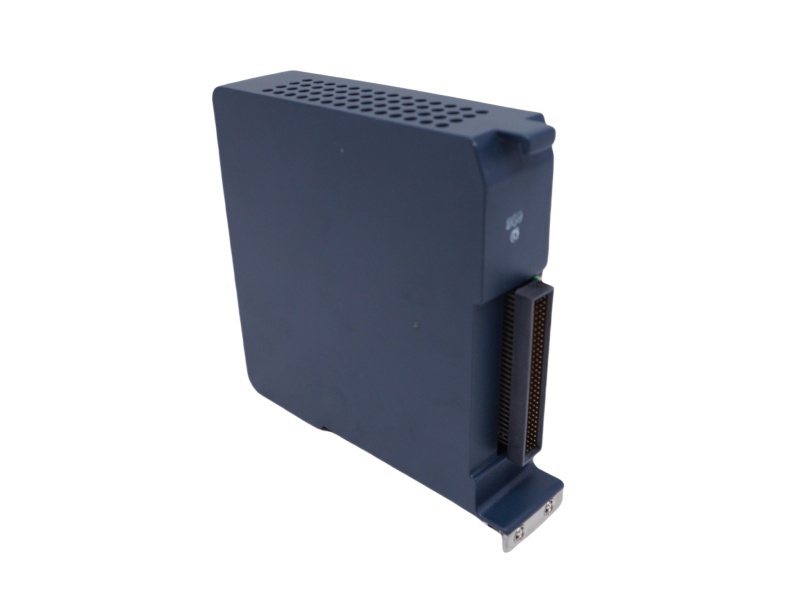

IC695PNC001 Product datasheet
|
Model number: |
IC695PNC001 |
|
Module Type： |
PROFINET Controller module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
PACSystems™ RX3i |
|
Lead time： |
In Stock |
|
Weight: |
0.64 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4x21.7x29.1cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC695PNC001 Functional Description

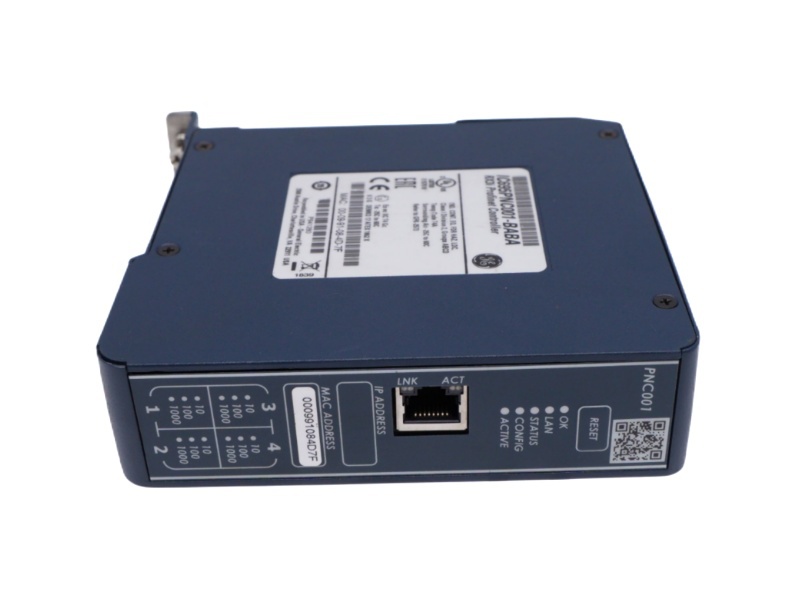

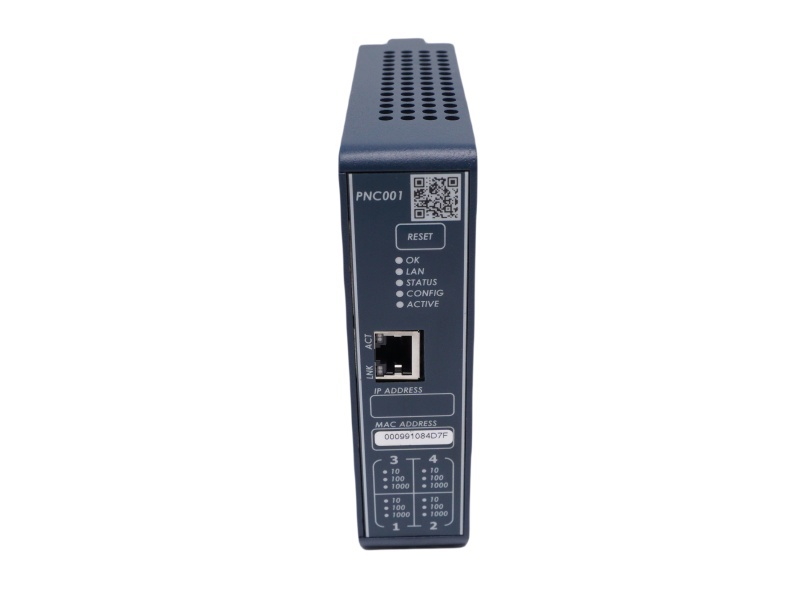

The IC695PNC001 is a high-performance PROFINET controller module, originally developed by GE Intelligent Platforms and now manufactured by Emerson Automation. This module is designed for use with PACSystems RX3i CPUs (specifically CPU315 or CPU320) with firmware version 7.0 or higher, enabling seamless data communication over a PROFINET network. The IC695PNC001 PROFINET controller module features two RJ-45 ports and two SFP slots, with SFP connectors available separately. A single IP address is assigned to these ports, simplifying network management.
The IC695PNC001 PROFINET controller module supports up to four modules installed in a single CPU's main rack, and it can connect up to 64 I/O devices per controller or a maximum of 128 I/O devices across eight controllers within a network. It also allows for network topologies such as ring, star, and daisy-chain. The module provides flexible data update times ranging from 1 ms to 512 ms, making it adaptable to various automation requirements.
Power consumption for the IC695PNC001 PROFINET controller module is 0.5 A without SFP devices and up to 1.2 A with two SFP devices installed, drawing a maximum of 1.5 A at 5.5 VDC. The module operates within a temperature range of 0 to 60°C and can be removed or inserted under power (RIUP) without disrupting system operation. Additionally, the IC695PNC001 PROFINET controller module includes a micro USB port for communication with a computer, facilitating system setup and diagnostics via a command-line interface.
The IC695PNC001 PROFINET controller module is built to provide reliable, high-speed connectivity in industrial automation environments, supporting firmware upgrades via the WinLoader software and offering a restart button for manual system resets. This PROFINET controller is an essential component for modern RX3i PACSystems, ensuring efficient and scalable automation solutions.
